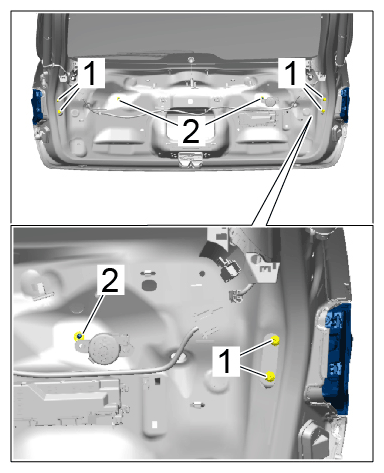

| Fastening screw for tail light on rear lid |
Position 1 |
Tightening torque |
7.2 Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |
| Fastening nut for tail light on rear lid |
Position 2 |
Tightening torque |
7.2 Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening nuts |
