Removing Tail Light In Rear Lid

1. Unclip cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

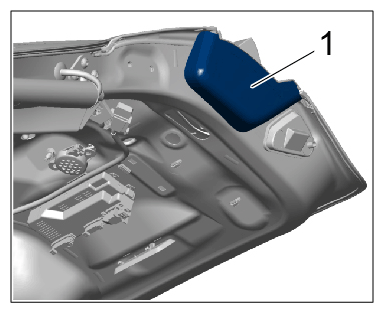

   Cover

2. Loosen tail light in rear lid.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

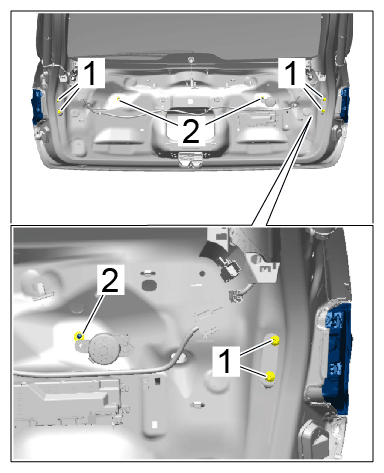

   Tail light in rear lid

   1. 2.1 Unscrew fastening screws -1-  .
   2. 2.2 Screw off fastening nuts -2-  .
3. Removing tail light in rear lid -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

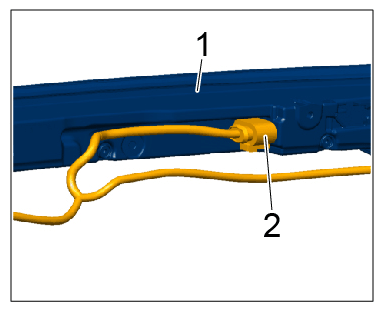

Tail light in rear lid

1. 3.1 Pull out right tail light in rear lid -1-  until the electric plug connection -2-  is accessible.
2. 3.2 Release and disconnect electric plug connections -2-  on tail light in rear lid -1-  .
3. 3.3 Remove tail light in rear lid -1-  .
