Technical Values

Location Description Type Basic value Tolerance1 Tolerance2

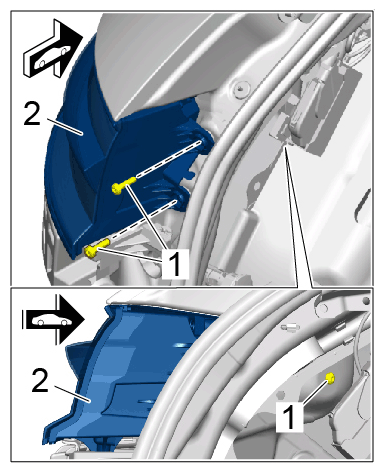

Fastening screw for tail light on body Position. 1 Tightening torque 7.2 Nm
G15162671Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Fastening nuts securing rear retaining strip to front retaining strip Position 1 Tightening torque 7, 2 Nm
G15162673Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip

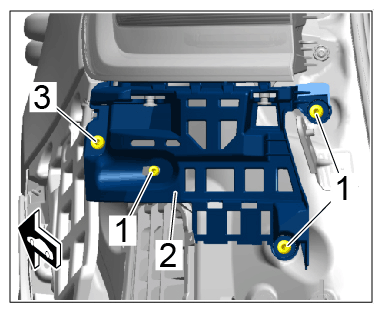

Fastening screw securing rear retaining strip to front retaining strip Position 3 Tightening torque 7, 2 Nm
G15162674Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip
