Install Left Rear Light

If the rear light is replaced, continue with Step 1:

If the rear light is replaced, continue with Step 2:

1. Fit insect protection on the new rear light.

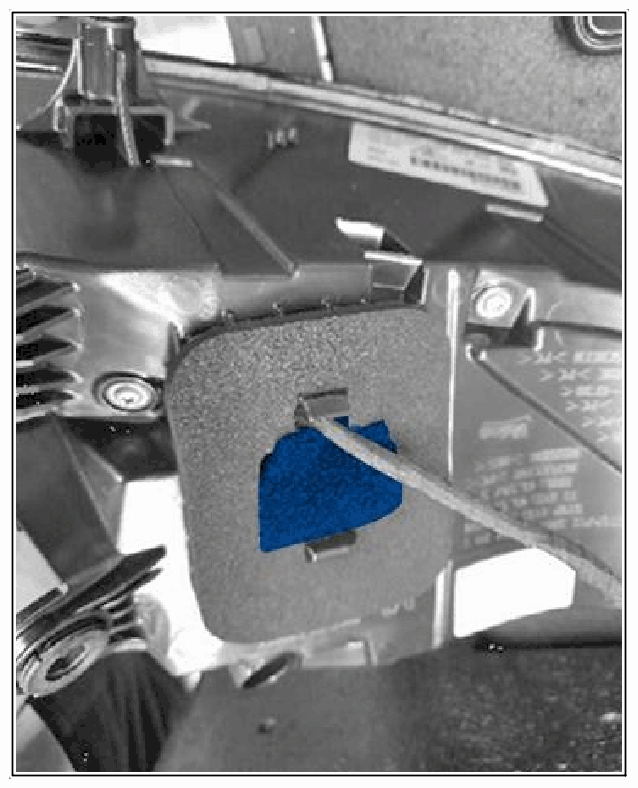

   1. 1.1 Place insect protection in cable feed-through point opening.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Insect protection

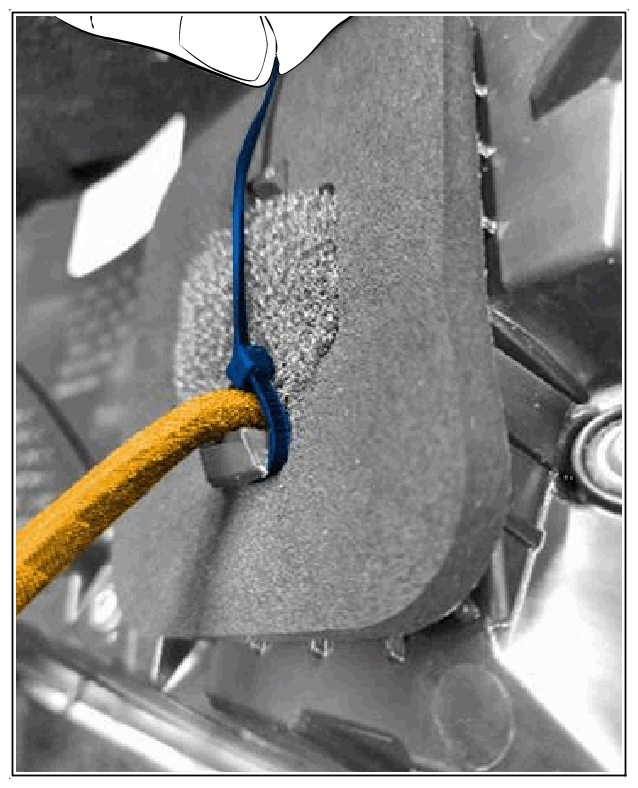

   2. 1.2 Secure electric line to the rear light with a tie-wrap.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Securing electric line

   3. 1.3 Cut off remaining tie-wraps.
2. Installation is performed in reverse order. Pay particular attention to the following:

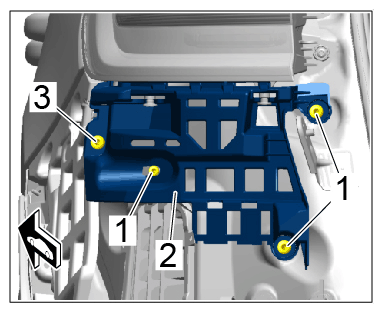

   1. 2.1 If installed: Tighten fastening screw -3-  on front retaining strip -2-  to > Tightening torque 7, 2 Nm  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Retaining strip

   2. 2.2 Tighten fastening nuts -1-  on front retaining strip -2-  to > Tightening torque 7, 2 Nm  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Retaining strip

      Information

      The electric line must not be between the seal and lamp housing.

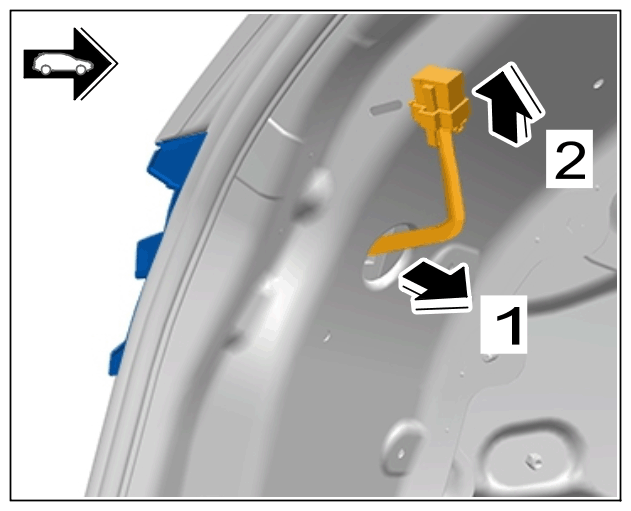

   3. 2.3 Guide electric connector through the side section -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric lines

      Pull electric line fully through the opening -2-  so that the electric line is not trapped between the gasket and bodyshell.

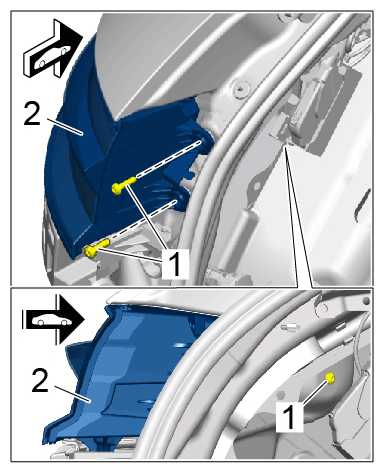

   4. 2.4 Tighten -1-  > Tightening torque 7.2 Nm  fastening screw.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws

   5. 2.5 If the tail light was replaced, set the gap dimensions by turning the adjustment device.
