Disassembling PDLS Headlights - Sae

  1. Unscrew fastening screws -1-  and remove cover -2-  .

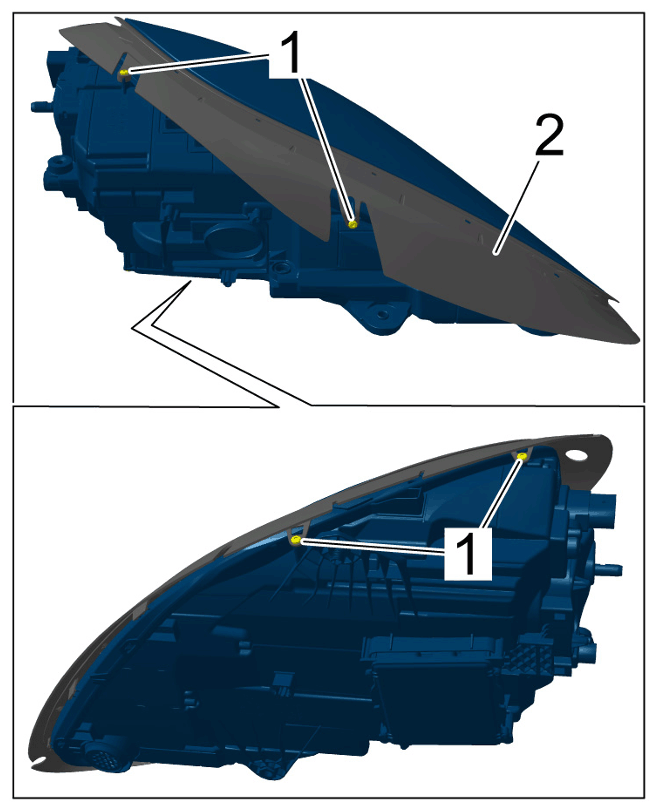

    G15162629Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

  2. Remove light bulb control unit for PDLS headlights.

    > 945819 - REMOVING AND INSTALLING LIGHT BULB CONTROL UNIT

  3. Remove headlight ventilation component.

    > 941555 - REMOVING AND INSTALLING HEADLIGHT VENTILATION COMPONENT
