Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

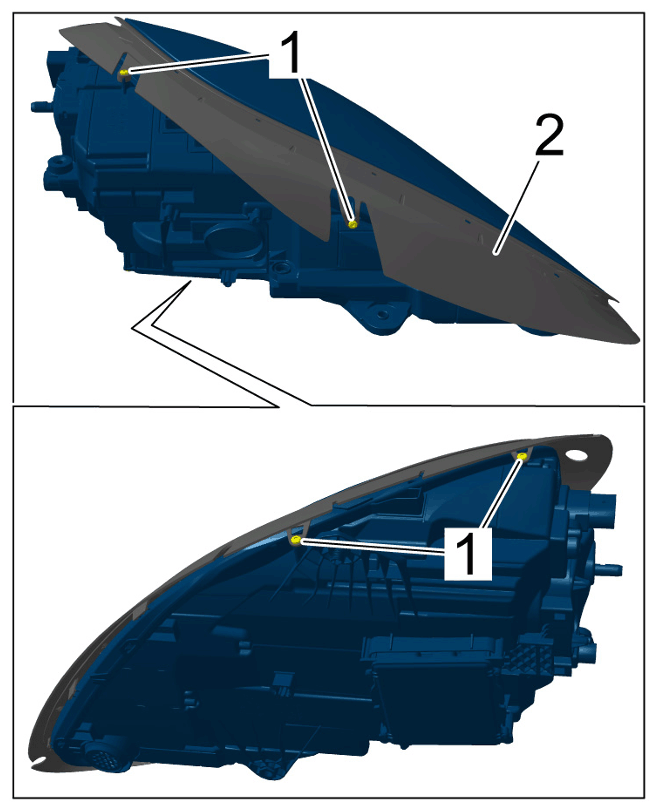

Fastening screws securing cover to headlight Item 1 Tightening torque 1.2 Nm (0.7 ftlb.)
G15162638Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover
