Assembling Basic Headlights - ECE

Information

Service cover must be replaced.

1. Assembly is performed in reverse order. Pay particular attention to the following:

Note running direction of the fan. The alignment must not be changed.

Fit service cover -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

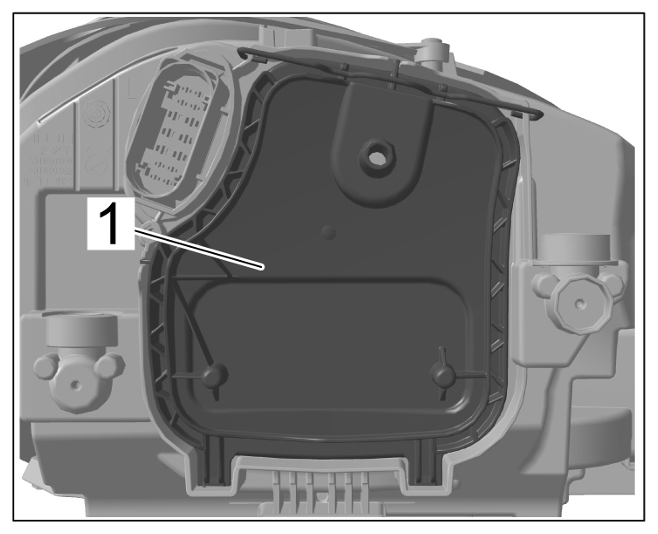

Service cover

Tighten fastening screw on cover to > Tightening - torque 1.2 Nm (0.7 ftlb.)  .
