Home >> Porsche >> 2021 >> Macan Base >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> 94 Lights, Lamps, Switches Exterior -- 95B - MACAN (95B) >> WM, 941519 Removing And Installing Main Headlights >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing headlight to headlight mounting Item 1 Tightening torque 8 Nm (6 ftlb.)

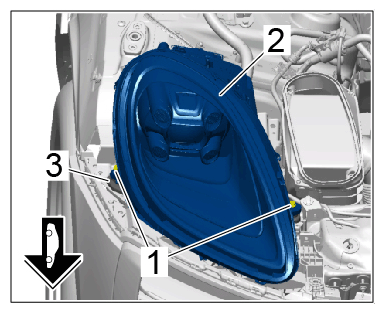

G15162601Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headlights
