Removing Main Headlight

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

  → Switch off electrical loads before disconnecting or removing them.

1. Loosen headlight.

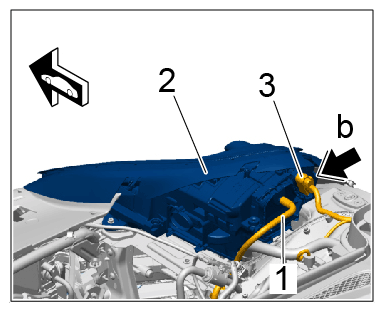

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Breather hose

   1. 1.1 Pull breather hose -1-  off the headlight -2-  .
   2. 1.2 Release electric plug connection -3-  (-arrow b-  ) and disconnect it from the headlight -2-  .
2. Remove headlight.

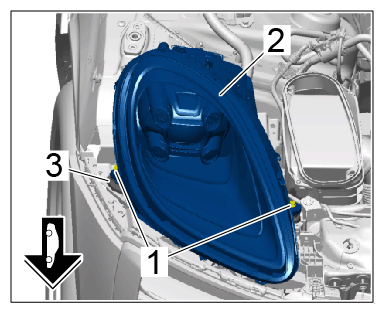

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headlights

1. 2.1 Unscrew fastening screws -1-  .
2. 2.2 Remove headlight -2-  from the headlight mounting point -3-  .
