Removing Rear Kessy/Pas Antenna

  1. Remove rear KESSY/PAS antenna -1-  .

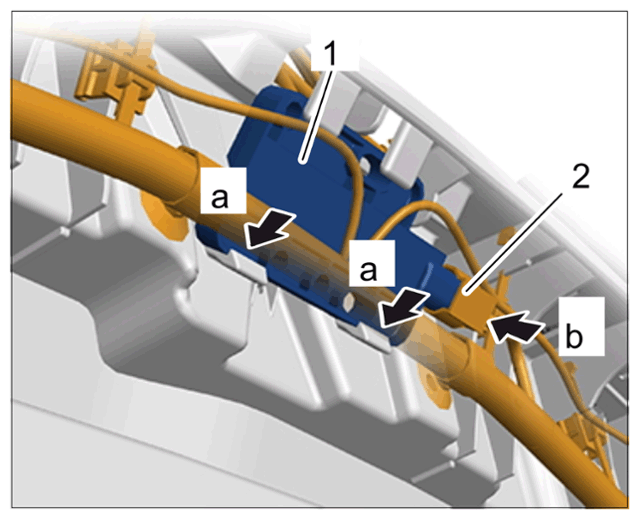

    G15162814Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear KESSY/PAS antenna

    Disengage retaining lugs -arrows a-  and remove rear KESSY/PAS antenna -1-  from its holder.

    1. 1.1  Release electric plug connection -2-  and pull it off -arrow b-  .
