Removing Kessy/Pas Antenna On Door Entry Guard

  1. Remove KESSY/PAS antenna on door entry guard

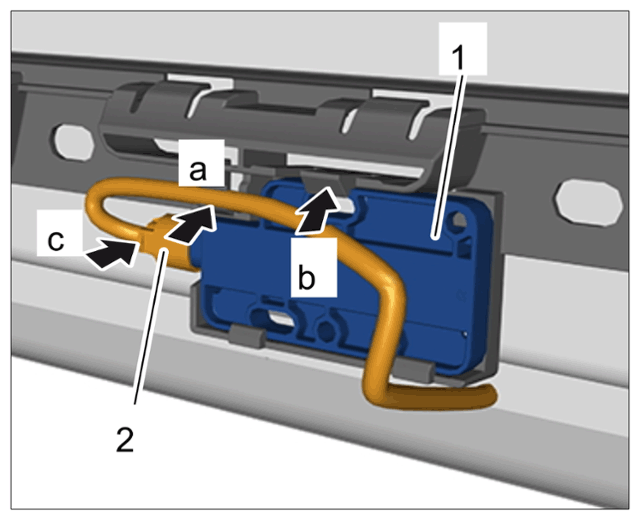

    G15162815Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    KESSY/PAS antenna on door entry guard

    1. 1.1  Unclip electric line from the holder -arrow a-  .
    2. 1.2  Disengage retaining lug -arrow b-  and remove KESSY/PAS antenna on door entry guard -1-  from its holder.
    3. 1.3  Release electric plug connection -2-  and pull it off -arrow c-  .
