Removing Bulb

  1. Removing -3-  bulb.

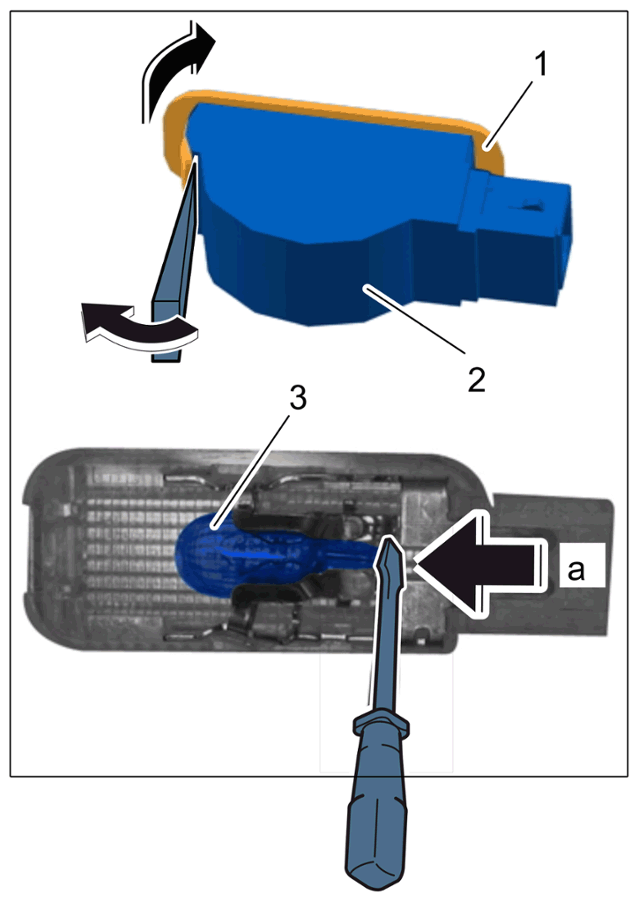

    G15162759Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bulb

    1. 1.1  Carefully lever off lens -1-  using a plastic wedge and remove it from the housing -2-Arrows-  .
    2. 1.2  Press bulb -3-  out of the socket using a small screwdriver -arrow a-  .
