Removing Plug Socket In Luggage Compartment Side Panel At The Left

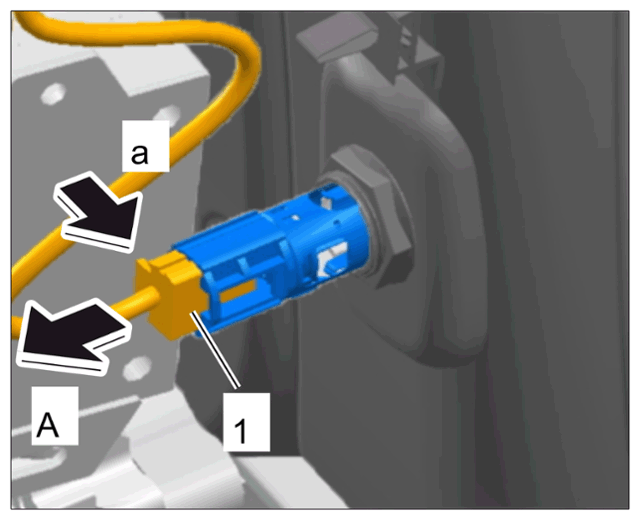

  1. Release electric plug connection -1- (-arrow a-)  and disconnect it -arrow A-  .
    G15162285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for plug socket in luggage compartment side panel at the left

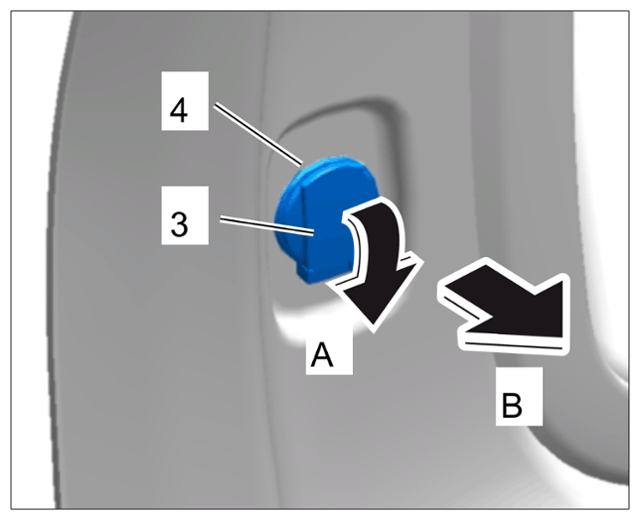

  2. Open the cover of the plug socket -3- (-arrow A-)  and press out plug socket -4-  by pushing it forward -arrow B-  .
    G15162286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug socket in luggage compartment side panel at the left
