Removing Plug Socket In Centre Con Sole Storage Bin

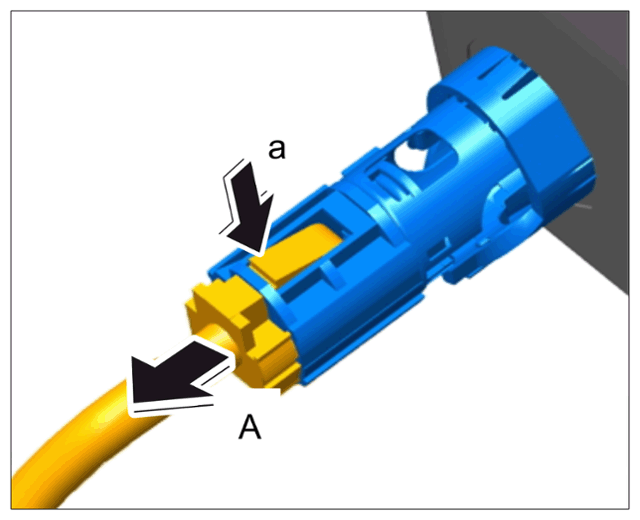

  1. Release electric plug connection at the plug socket -arrow a-  and disconnect it -arrow A-  .
    G15162279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on plug socket in centre console storage bin

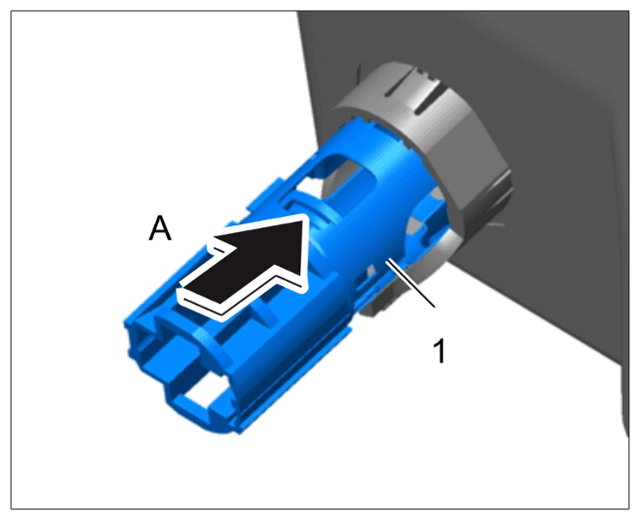

  2. Open the cover of the plug socket and press plug socket -1-  on the underside outwards using a screwdriver -arrow A-  .
    G15162280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug socket in centre console storage bin

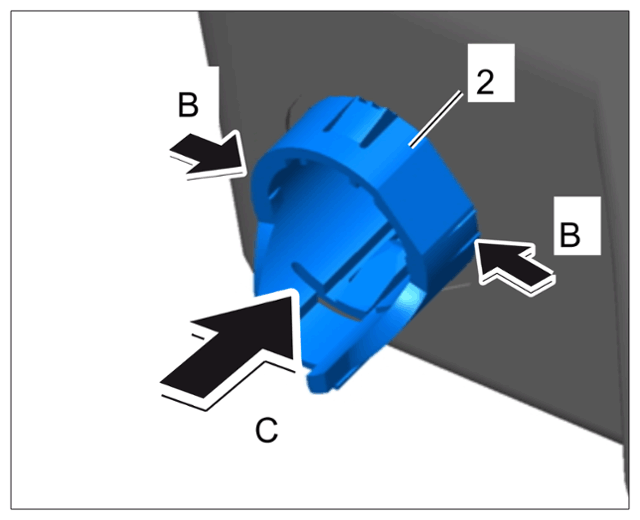

  3. Release trim -2- (-arrow B-)  and press it outwards -arrow C-  .
    G15162281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim around plug socket in centre console storage bin
