90 Instruments -- 95B - MACAN (95B)
>>
WM, 905019 - Removing And Installing Horn
>>
Removing Horn
Removing Horn
Information
Some of the repair illustrations show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

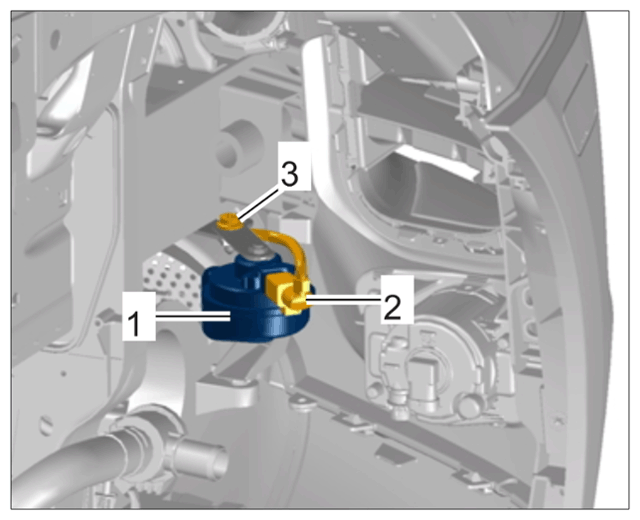

Remove horn
-1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Horn
1.1
Release electric plug connection
-2-
and disconnect it from the horn
1.2
Unscrew fastening screw
-3-
and remove horn
-1-
.
