Installing Horn

  1. Install horn -1-  .

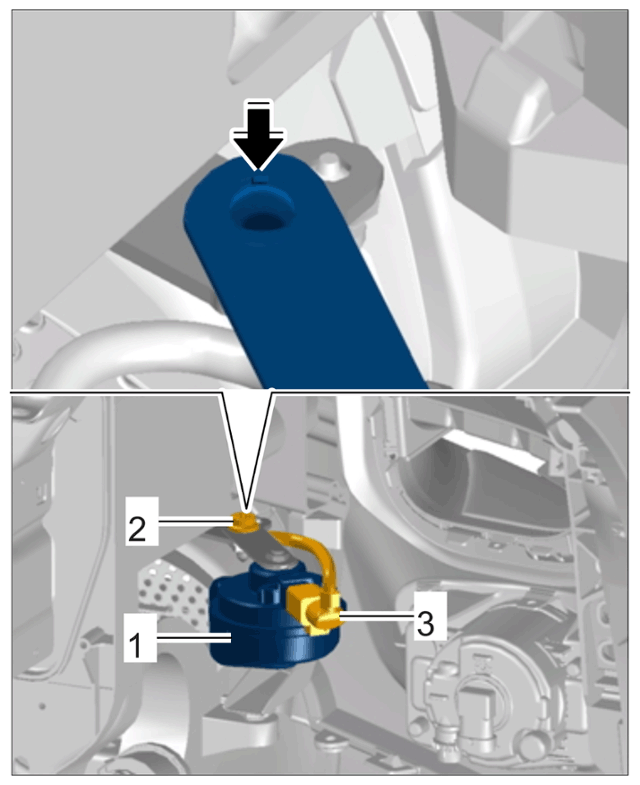

    G15162277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Horn

    1. 1.1  Position the horn so that the cut-out in the holder goes around the bolt on the bumper -Arrow-  .
    2. 1.2  Tighten fastening screw -2-  to > Tightening - torque 20 Nm (15 ftlb.)  .
    3. 1.3  Connect electric plug connection -3-  until the electric plug connection engages securely.
