Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws securing instrument cluster to dashboard Item 1 Tightening torque 3 Nm (2 ftlb.)

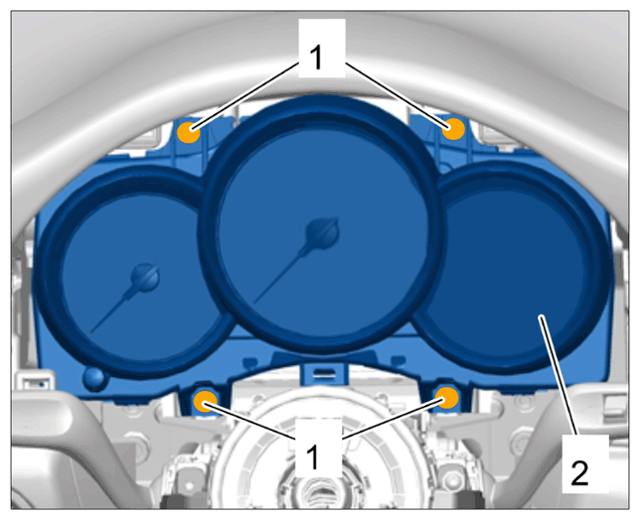

G15162257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Instrument cluster
