Installing Instrument Cluster

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

1. Installation is performed in reverse order. Pay particular attention to the following:

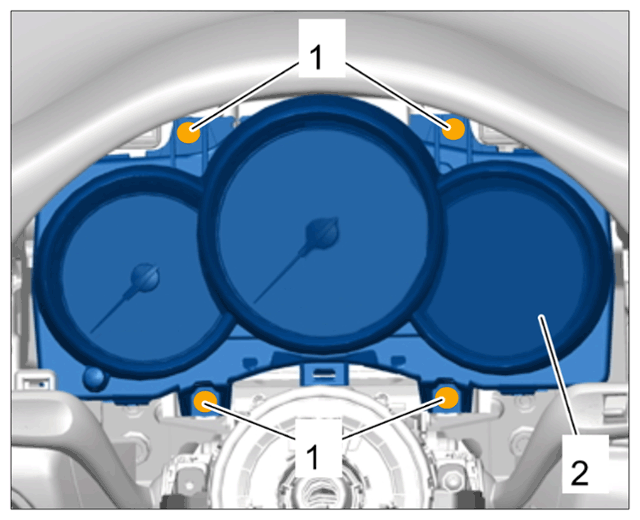

   Tighten fastening screws -1-  to > Tightening - torque 3 Nm (2 ftlb.)  until secure.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Instrument cluster
