Removing Stopwatch

  1. Unscrew fastening screws -1-  .
    G15162254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Stopwatch

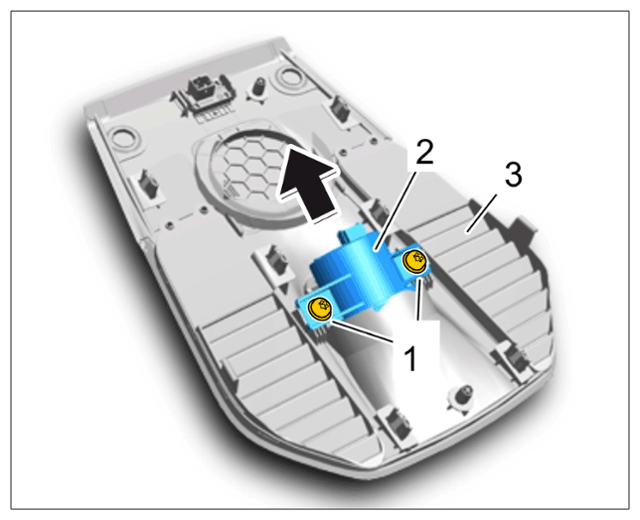

  2. Remove stopwatch -2-  from cover for centre loudspeaker -3-Arrow-  .
    G15162255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Stopwatch
