Installing Stopwatch

  1. Installation is performed in reverse order. Pay particular attention to the following:

    Tighten fastening screws -1-  to > Tightening - torque 3 Nm (2 ftlb.)  until secure.

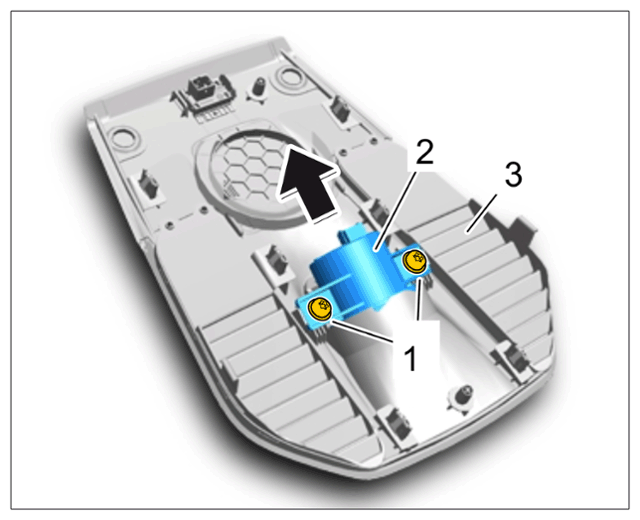

    G15162256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Stopwatch
