Subsequent Work

  1. Install transmission support -9-  .
    1. 1.1  Fit transmission support -9-  .
    2. 1.2  Fit and tighten nuts -1-  and screws -2-  .

      Nuts -1-  > Tightening - torque 20 Nm (15 ftlb.)

      Screws -2-  > Tightening - torque 70 Nm (52 ftlb.)

    3. 1.3  Lower > VAS 6931 - engine and gearbox jack  and remove it from the work area.

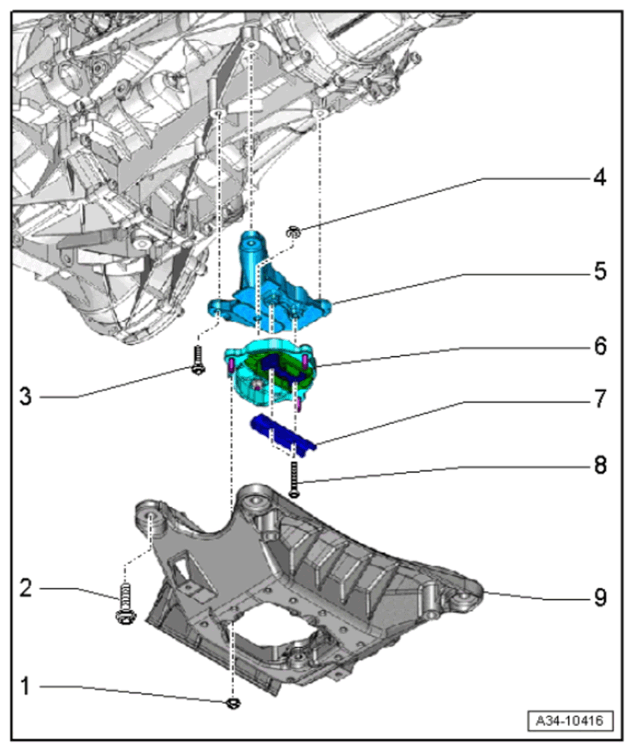

      Fig 1: Transmission Bracket Component Location
      G15152636Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Transmission bracket

  2. Install centre underbody cover.
