Removing Transfer Gear

  1. Remove transfer gear -6-  .
    1. 1.1  Release and disconnect cable plug -7-  .
    2. 1.2  Unclip clip -8-  and set electric line -9-  aside.
    3. 1.3  Support the transfer gear -6-  using > VAS 6931 - engine and gearbox jack  and secure with a tension strap on > VAS 6931 - engine and gearbox jack  .
    4. 1.4  Unscrew screws on transfer gear in the sequence -5 to 1-  .
    5. 1.4.1  Replace screws on transfer gear.
    6. 1.5  Loosen transfer gear -6-  from double clutch transmission and lower it on > VAS 6931 - engine and gearbox jack  .

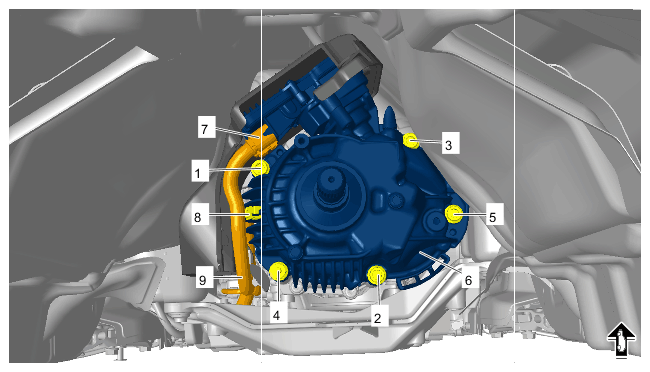

    Fig 1: Transfer Gear Screws Loosening Sequence
    G15152616Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transfer gear
