Removing Rear CARDAN Shaft

Information

• Mark the position of all parts in relation to each other before removal. The parts must be re-installed at the same position because otherwise there may be too much imbalance.
• This can damage the mount and cause humming noises.

Information

• Do not store the cardan shaft kinked, but only facing upwards in elongated position with the centre bearing holder.
• The centre cardan shaft joint must not be I inked by more than 10°.
• The cardan shaft is held by a single-lug clip and this must be removed before disassembly.
• Always pull the cardan shaft horizontally off the output shaft all-wheel clutch or always push it on horizontally.
• if you are only separating the cardan shaft from the rear final drive, tie up or support the cardan shaft at the end of the shaft.
• To avoid damaging the cardan shaft during removal and installation, get another person to help.
• Do not carry out any repair work on the cardan shaft.

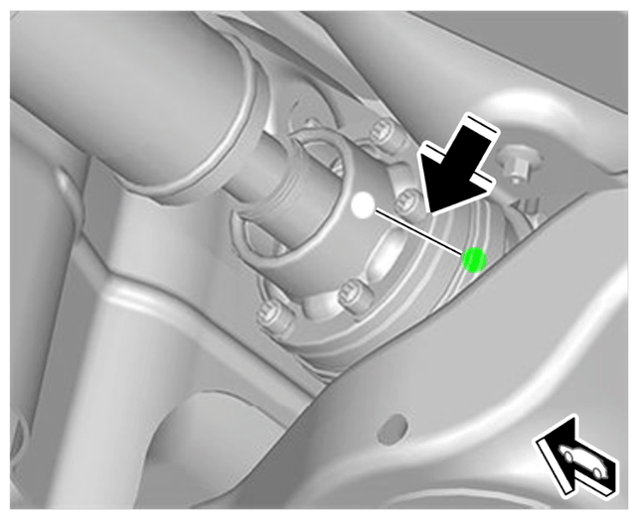

1. Mark the installation position of the cardan shaft on the rear axle differential in the matching point area (white on cardan shaft, green on rear axle differential flange) -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking installation position of cardan shaft

2. Loosen single-lug clip -1-  on the cardan shaft at the transmission side fully.

   For better access for tools, push the cardan shaft to the rear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

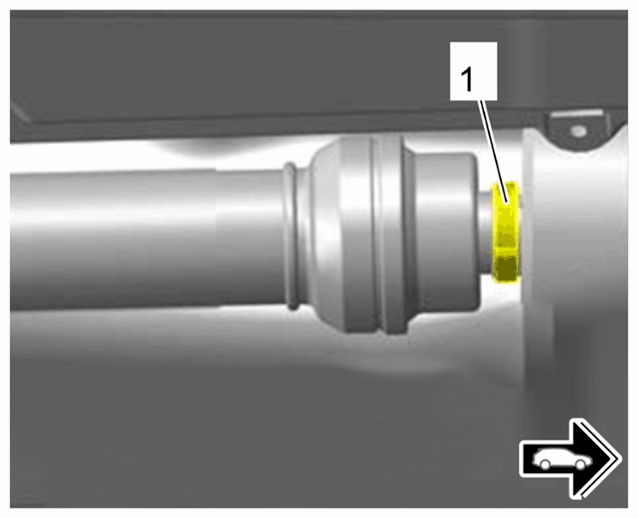

   Single-lug clip

   Information

   Get another person to help by pressing the brake to prevent the cardan shaft from turning. Alternatively, activate the electronic parking brake (EPB).

3. Unscrew screws -1-  on the cardan shaft -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

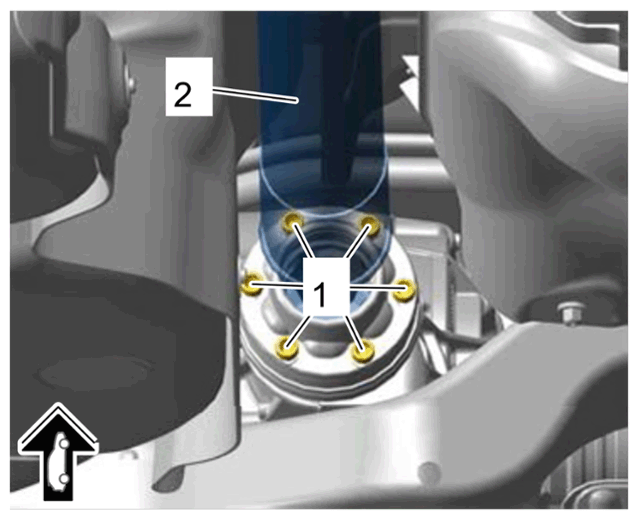

   Cardan shaft screws

   1. 3.1 Replace screws and plates!
4. Remove rear tunnel cross member -1-  and heat shield -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

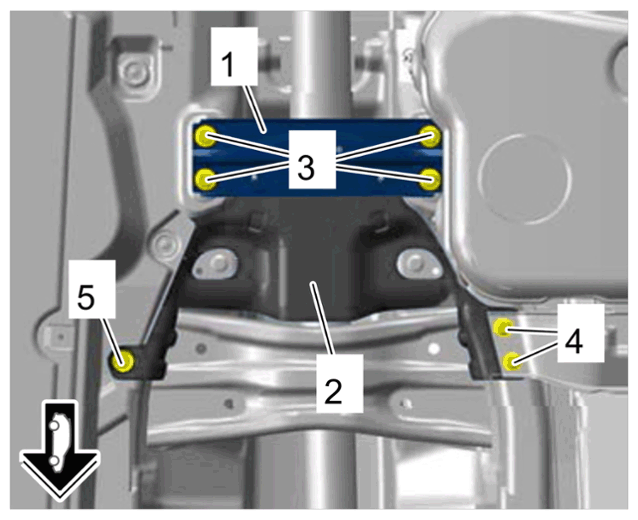

   Rear tunnel cross member and heat shield

   1. 4.1  Unscrew screws -3 and 4-  .
   2. 4.2  Screw off collar nut -5-  .
   3. 4.3  Take off the rear tunnel cross member -1-  and heat shield -2-  .
5. Remove front tunnel support -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

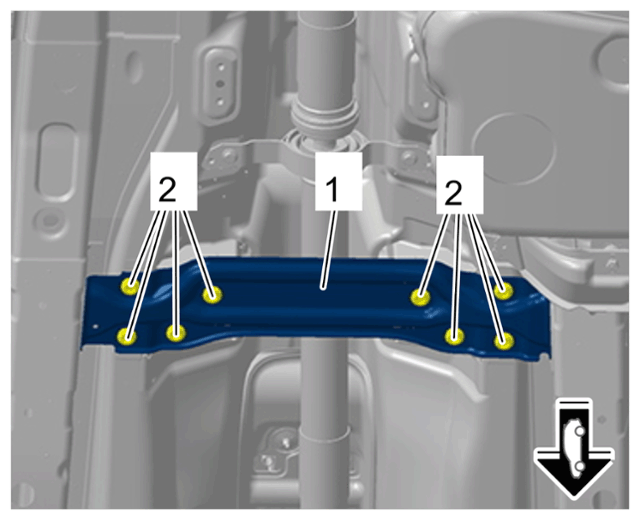

   Front tunnel support

   1. 5.1  Unscrew screws -2-  .
   2. 5.2  Take off the front tunnel support -1-  .

   Information

   The help of another person is required to prevent the cardan shaft in the centre bearing from bending by more than 10°.

   Information

   • If the cardan joint is stuck on the transfer gear, never try to loosen it by levering between the bellows, vibration dampers or transfer gear.
   • Make sure there is sufficient clearance between the rear cardan flange and transmission flange.
   • Pull the cardan shaft off the transfer gear by giving it a quick pull to the rear.
6. Remove cardan shaft -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

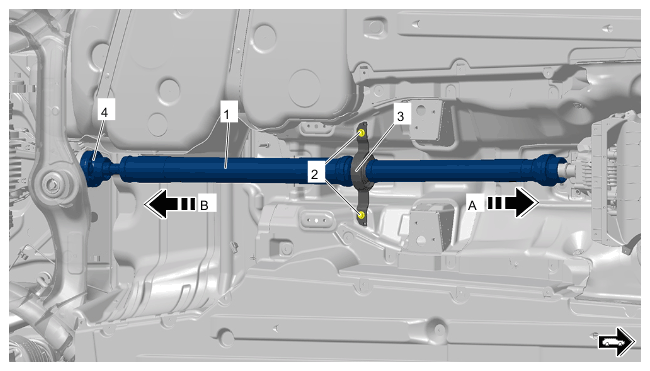

   Cardan shaft

   1. 6.1  Unscrew screws -2-  on the centre bearing -3-  .
   2. 6.2  Press cardan shaft -1-  forward as far as it will go in extended position -direction of arrow A-  .
   3. 6.3  Pull rear cardan shaft flange -4-  downwards and expose it and get another person to help to secure it.
   4. 6.4  Detach the cardan shaft from the transfer gear by giving it a quick pull to the rear.
   5. 6.5  Remove cardan shaft -1-  in -direction of arrow B-  .
7. Visual inspection:  Check cardan shaft for damage.
   • Metal cap and retaining clips for bellows
   • Bellows
   • Flanges and splines
   • Cardan shaft and centre bearing

   Replace the cardan shaft if it is damaged!
