Installing Right Halfshaft Flange

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

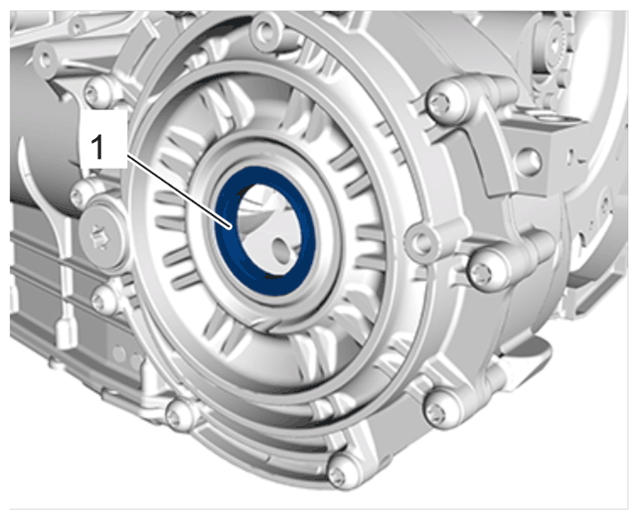

Sealing ring on front right halfshaft flange

1. 1.1  If the sealing ring is damaged, replace the sealing ring on the front right halfshaft flange -1-  .
   • WM, 395955 REPLACING SEALING RING FOR FRONT HALFSHAFT FLANGE
2. 1.2  Half-fill the space between tie sealing and dust lips with sealing grease.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

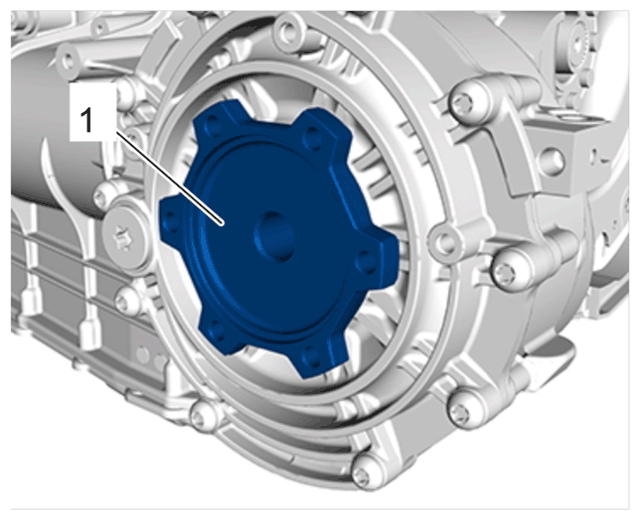

Right halfshaft flange

1. 2.1  Carefully guide in right halfshaft flange -1-  .
2. 2.2  Tap in right halfshaft flange using > VW295 - drift  .
