Installing Left Halfshaft Flange

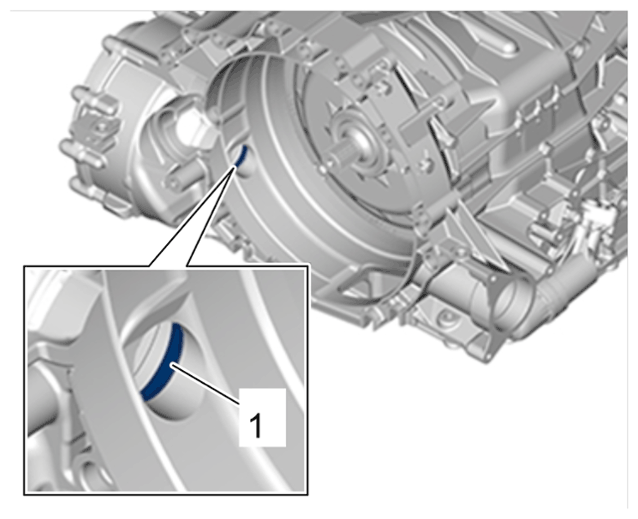

  1. Check sealing ring for front left halfshaft flange -1-  for damage.
    G15152557Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring for front left halfshaft flange

    1. 1.1  If the sealing ring is damaged, replace the sealing ring for the front left halfshaft flange
    2. 1.2  Half-fill the space between the sealing and dust lips with sealing grease.
  2. Install drive plate.
  3. WM, 136319 - REMOVING AND INSTALLING DRIVE PLATE (R4)

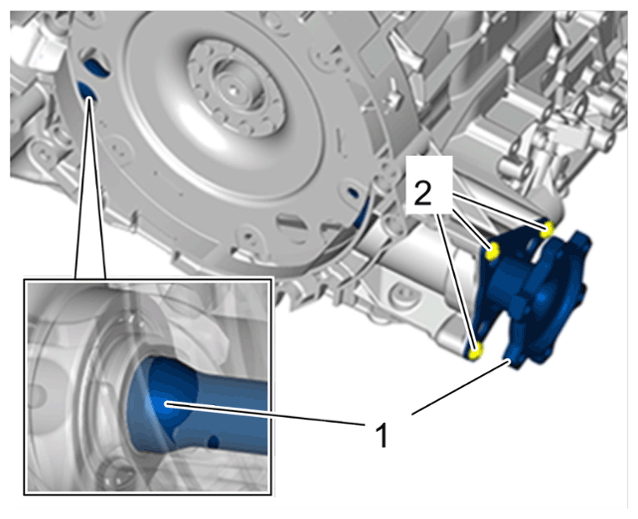

  4. Install the left halfshaft flange -1-  .
    G15152558Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left halfshaft flange

    1. 3.1  Turn the drive plate until the opening for the differential is visible.
    2. 3.2  Carefully insert the left halfshaft flange -1-  into the sealing ring as far as the stop.
    3. 3.3  Fit and tighten new  screws -2-  .
      • Initial tightening 15 Nm (11 ftlb.)
      • Final tightening + 45°
