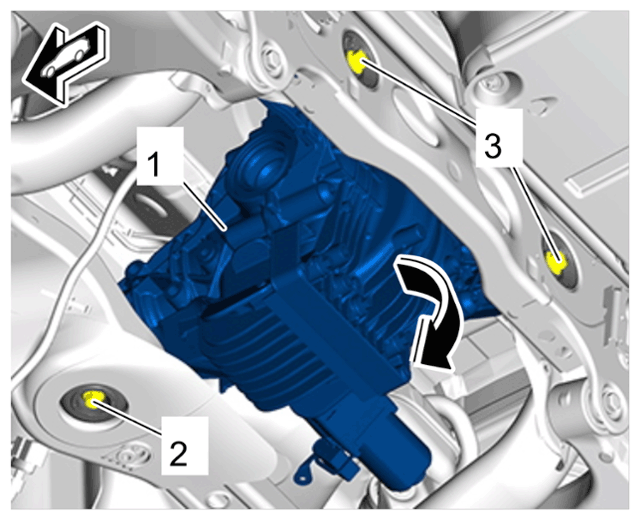

Installing Rear Final Drive

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1  Replace screw -2-  .
   2. 1.2  Tighten the screws -3-  .
      • Tightening torque 95 Nm (70 ftlb.)
   3. 1.3  Tighten screw -2-  .
      • Initial tightening 40 Nm (30 ftlb.)
      • Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear final drive
