Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Air inlet housing cover to body | Hexagon nut | Tightening torque | 3.5 Nm (2.5 ftlb.) | ||
| Mounting saddle to body | M10 x 35 thread/observe specified tightening sequence/always use new screws or bolts following removal | Initial tightening | 40 Nm (30 ftlb.) | ||
| Mounting saddle to body | M10 x 35 thread/observe specified tightening sequence/always use new screws or bolts following removal | Final tightening | + 90° | ||
| Distance from PASM connector holder to coil spring mounting | Permitted minimum distance | Length | 66 mm | ||
| Distance from PASM connector holder to coil spring mounting | Permitted maximum distance | Length | 69 mm | ||

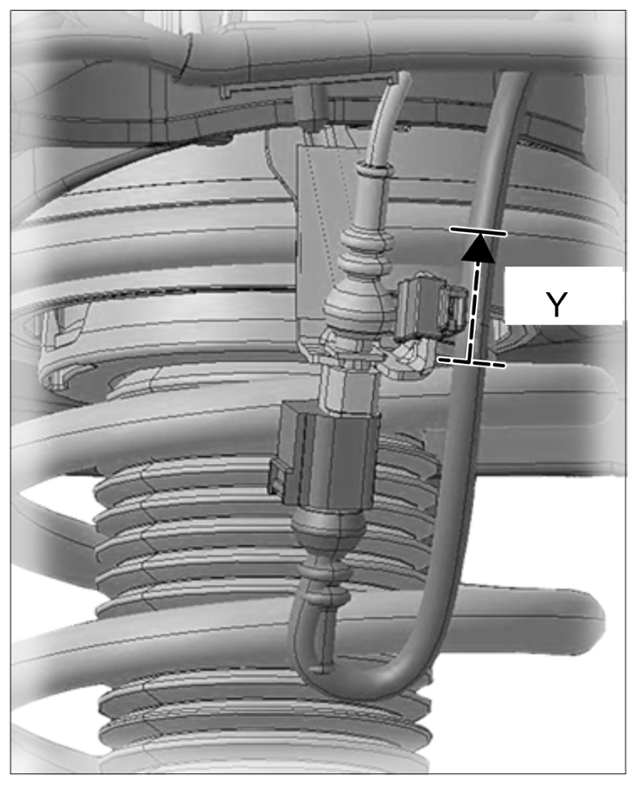

| Pushing PASM line into retaining clip | Length | 12.5 mm | +/- 2.5 mm | ||
|
Pushing PASM line into retaining clip |
