Rear Door Hinge

Location	Description	Type	Basic value
Screws securing door hinge to rear door	Item 1	Tightening torque	55 (41 ftlb.) Nm

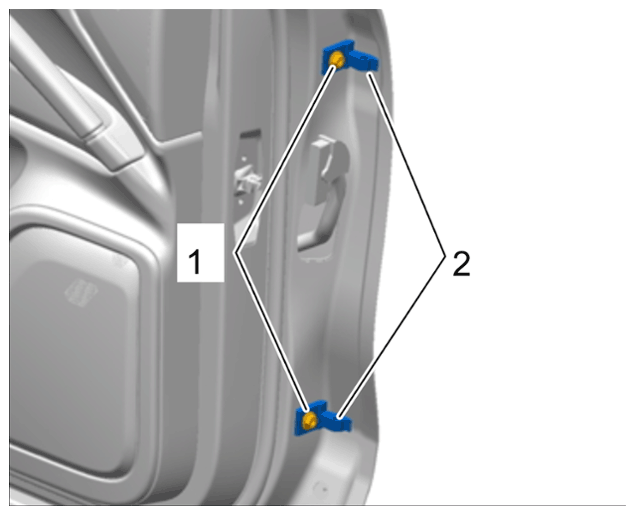

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door hinge on door side
Screws securing door hinge to outer B-pillar	Item 2	Tightening torque	50 (37 ftlb.) Nm

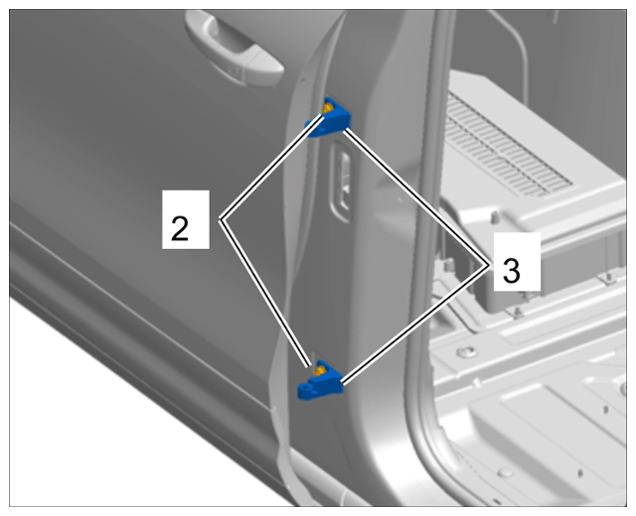

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door hinge on body side, outer
Screws securing door hinge to inner B-pillar	Item 1	Tightening torque	50 (37 ftlb.) Nm

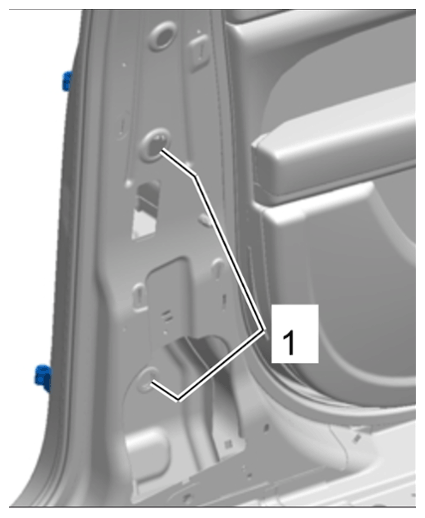

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door hinge on body side, inner
