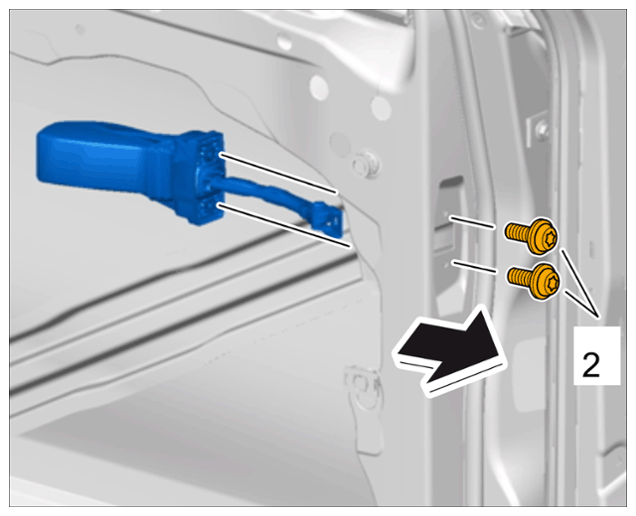

| Screw securing rear door arrester to door |
Item 2 |
Tightening torque |
8 (6 ftlb.) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door arrester |
|
|
|
|

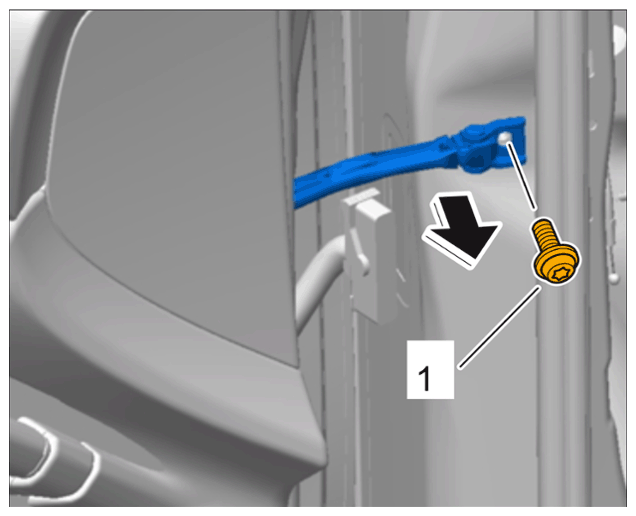

| Screw securing rear door arrester to B-pillar |
Item 1 |
Tightening torque |
33 (24 ftlb.) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrewing fastening screw at the body |
|
|
|
|
