Cover For Centre Underbody

Location	Description	Type	Basic value

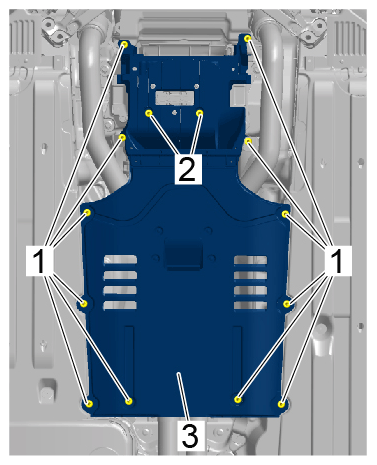

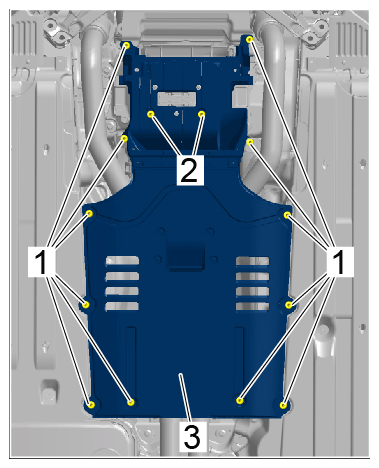

Screws securing central cover for centre underbody to body	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Central cover for centre underbody
Screws securing central cover for centre underbody to gear support	Item 2	Tightening torque	3.5 (2.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Central cover for centre underbody

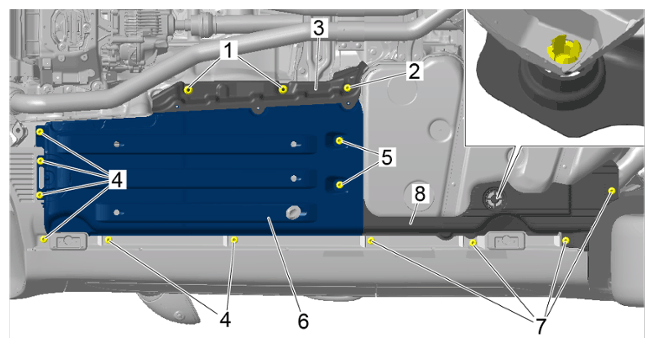

Nuts securing right heat shield to body	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Right heat shield
Screw securing right heat shield to body	Item 2	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Right heat shield
Screws securing cover for centre underbody at the right to body	Item 4	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for centre underbody at the right
Nuts securing cover for centre underbody at the right to body	Item 5	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for centre underbody at the right
Screws securing side cover at the rear to body	Item 7	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side cover at the rear

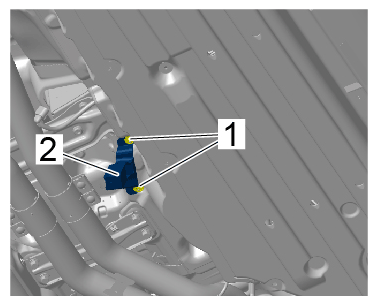

Nuts securing holder to body	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder

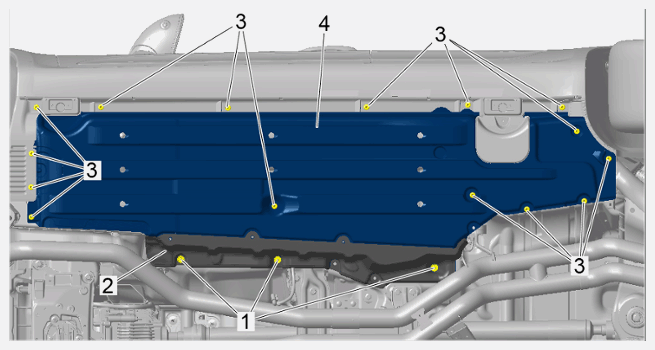

Nuts securing left heat shield to body	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Left heat shield
Screws securing cover for centre underbody at the left to body	Item 3	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for centre underbody at the left
