Gap Dimensions - 55 - Rear Lid

Location	Description	Type	Basic value	Tolerance
Rear lid/rear spoiler to roof	R1 (gap)	Gap dimension	6 mm	+/- 1.1 mm

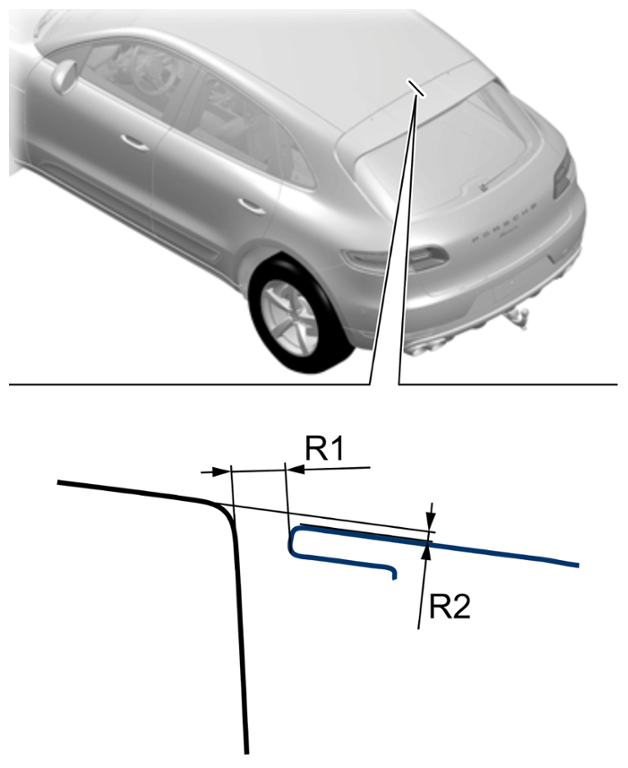

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid/rear spoiler
Rear lid/rear spoiler to roof	R2 (offset)	Gap dimension	- 1.5 mm	+/- 1.1 mm

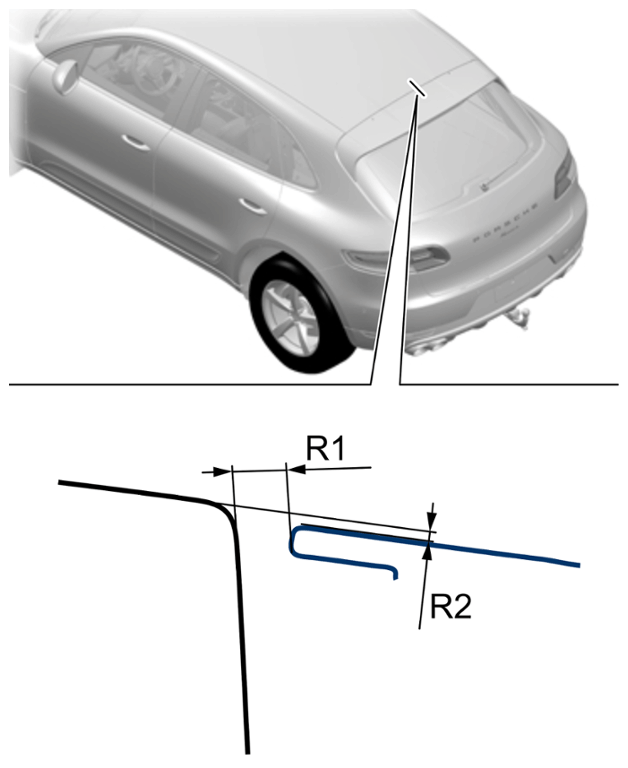

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid/rear spoiler to roof
Rear lid to side panel	R3 (gap)	Gap dimension	4 mm	+ 0.7 mm - 0.9 mm

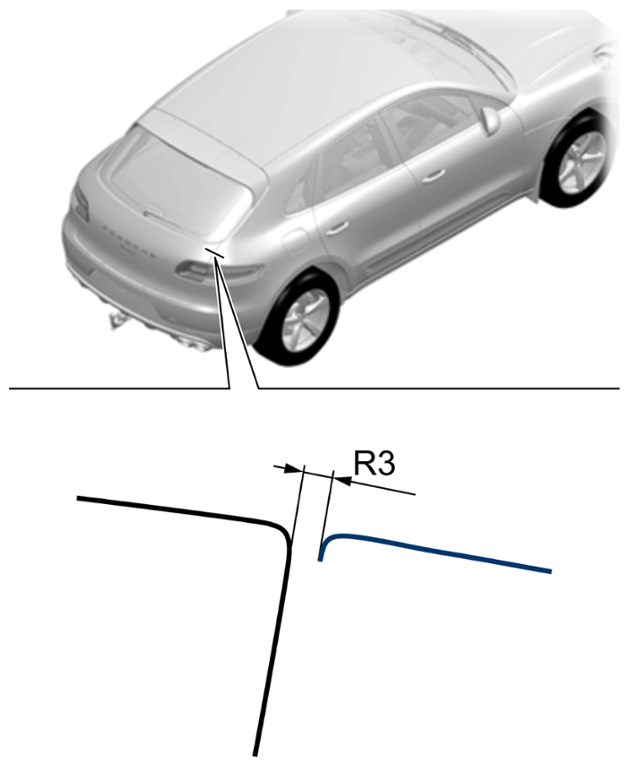

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to side panel
Rear lid to side panel	R3b (offset)	Gap dimension	0 mm	+/- 0.6 mm

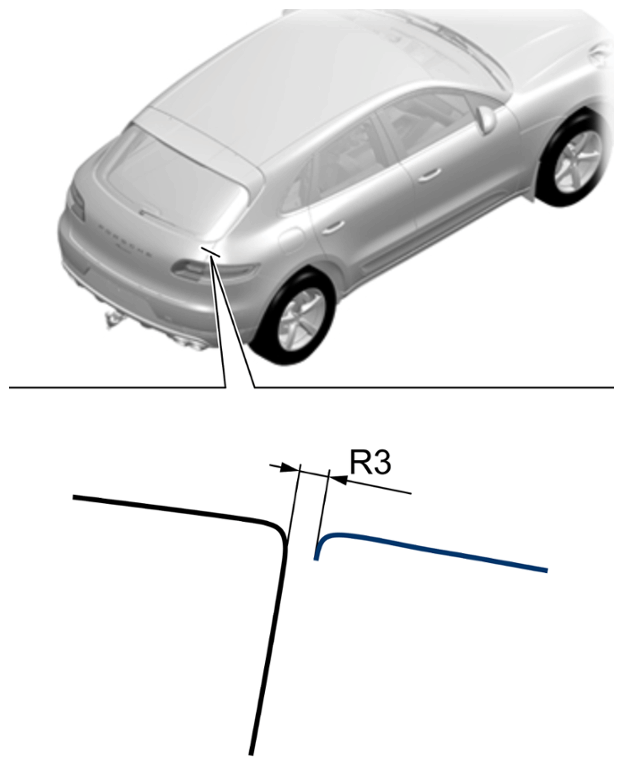

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to side panel
Rear lid to rear apron	R4 (gap)	Gap dimension	4 mm	+/- 0.8 mm

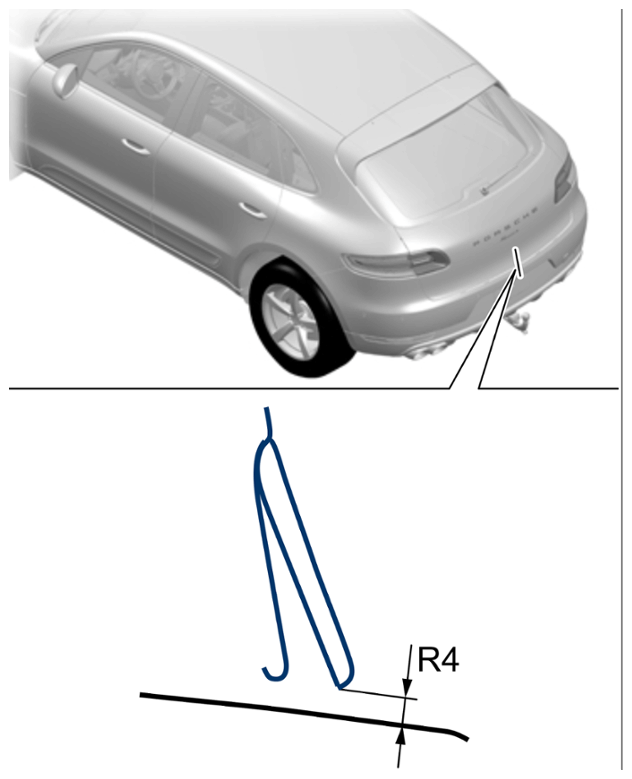

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to rear apron
