Removing Rear Window

Information

• The procedure for removing car windows is described in
  • WM, 6X00IN21 GENERAL INFORMATION ON REMOVING CAR WINDOWS

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

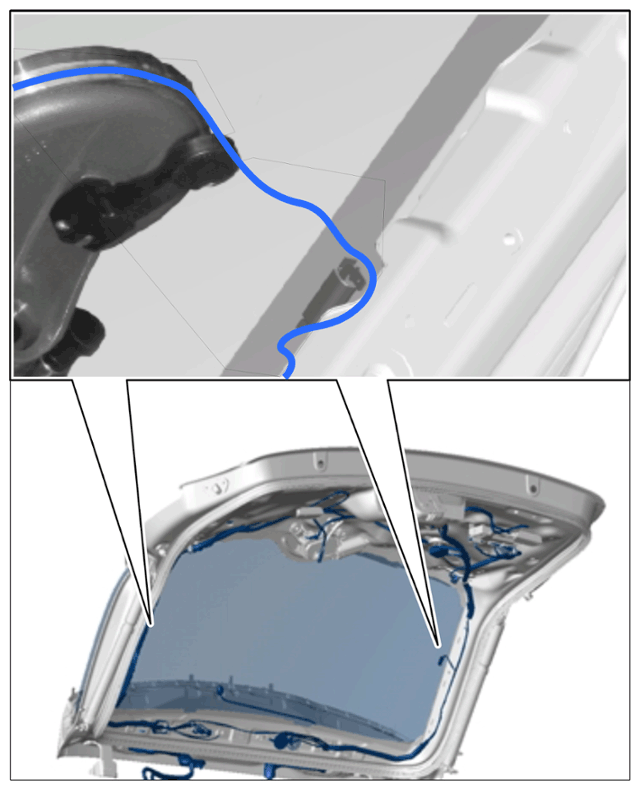

Cutting wire

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

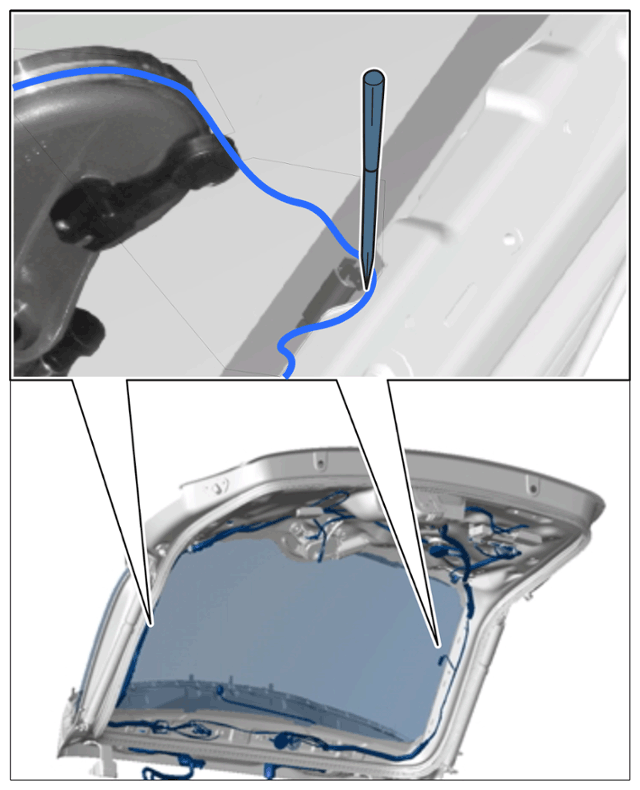

Awl

• Make sure not to damage the heated rear window connections when removing the glass with the cutting wire.
• Cut up to just before the connection.
• Slacken the cutting wire.
• Guide the cutting wire past the connection on the inside.
• Counter with an awl.
• Make sure that the cutting wire does not press against the electric connection when separating the glass.
• Continue separating the window glass.

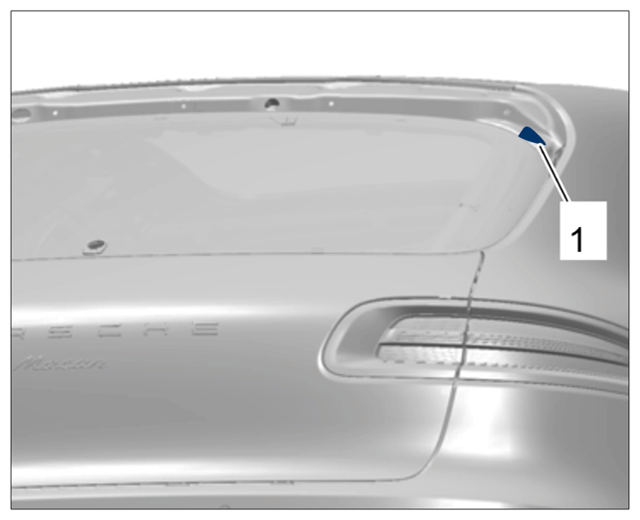

1. Affix adhesive tape -1-  to the right corner of the rear window at the rear lid.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Position of adhesive tape

   WARNING: Vehicle windows removed and installed incorrectly

   • Danger of cuts
   • Risk of eye injuries
     1. → Wear personal protective gear.
     2. → Always shut off power supply when replacing cutting knife.
2. Apply a bead of adhesive from inside out in the area protected by the adhesive tape using the scratch awl.
3. Remove rear window using cutting wire or cutting cord.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cutting wire
