Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Nuts securing rear side window to body Item 1 Tightening torque 8 Nm (6 ftlb.)

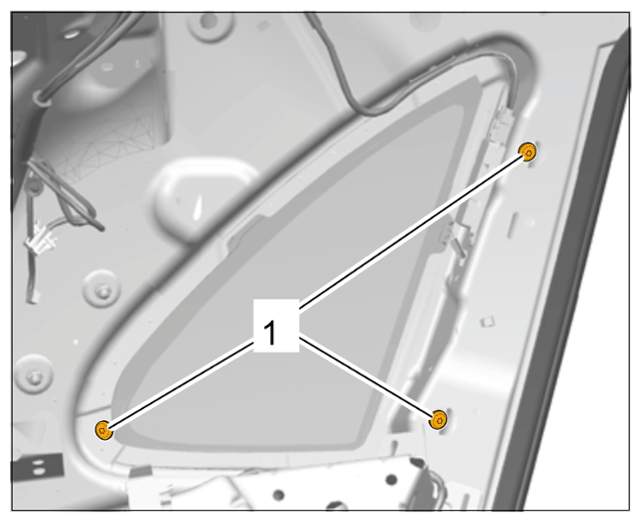

G15160288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side window mounting
