Home >> Porsche >> 2021 >> Macan Base >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> 64 Glazing, Window Operation -- 95B - MACAN (95B) >> WM, 647519 Removing And Installing Rear Side Window >> Removing Rear Side Window

Removing Rear Side Window

  1. Release and disconnect electric plug connection -1- for antenna amplifier.

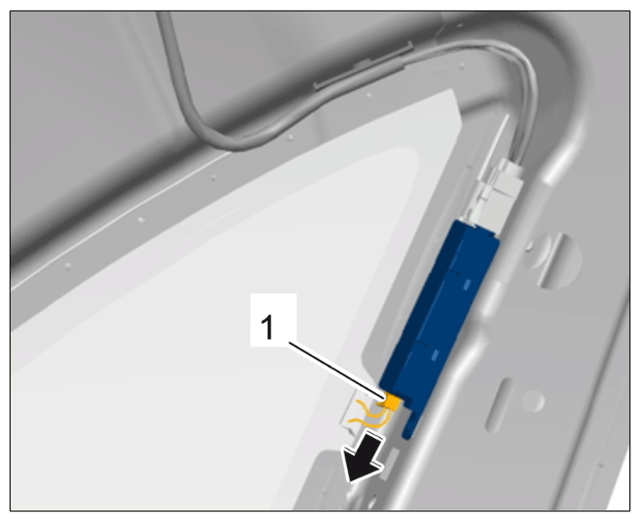

    G15160291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unscrew nuts

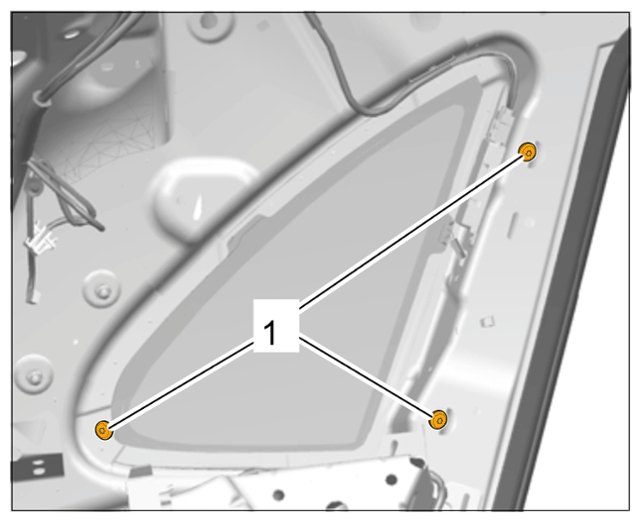

    G15160292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear side window

  3. Remove rear side window.
