Removing Rear Window Channel Seal

Information

The moulding cannot be removed without damaging it irreparably and must always be replaced.

1. Open the rear door window fully.

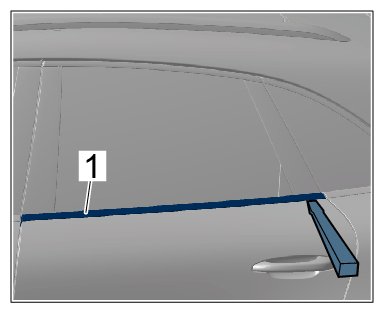

2. Carefully loosen rear window channel seal -1-  from the sheetmetal flange using a plastic wedge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear window channel seal

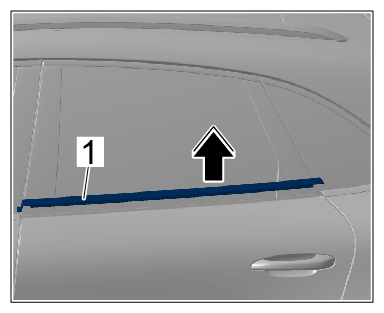

3. Pull rear window channel seal -1-  up of the sheetmetal flange, starting at the rear -arrow-  , and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear window channel seal
