Removing Rear Power Window Motor

WARNING: Electrically moved components

Danger of limbs being trapped or severed
1. → Switch off electric power to drive motor.
2. → Make sure it does not switch on again.
3. → Check that there is no electric charge.

NOTIFICATION

Voltage peaks

Risk of damage to electrical load or to the control unit
1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
2. → Switch off electrical loads before disconnecting or removing them.

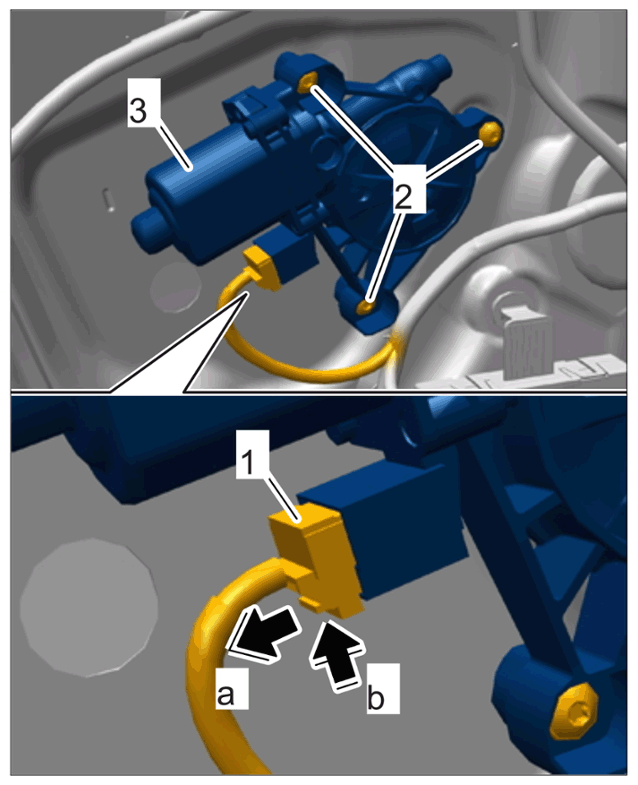

Pull out locking mechanism -arrow a- , press release button -arrow b- and pull off electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear power window motor
Unscrew screws -2- and remove rear power window motor -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear power window motor
