Removing Rear Door Window

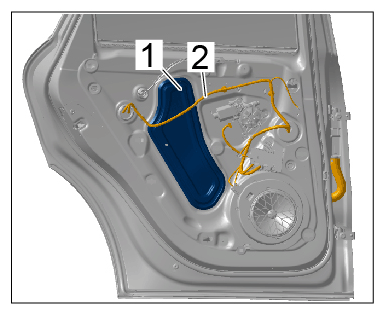

Unclip electric wire harness -2- from door inner panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
Unclip cover -1- from door inner panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

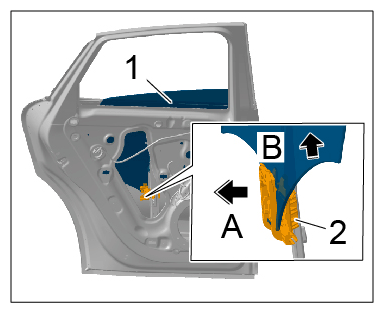

Loosen rear door window glass -1- .

3.1 Slide rear door window glass -1- down until the mountings -2- are accessible through the cut-outs in the door inner panel.

3.2 Actuate locking mechanism -2- using a suitable tool -arrow A- and carefully lift the rear door window glass -1- (-arrow B-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door window

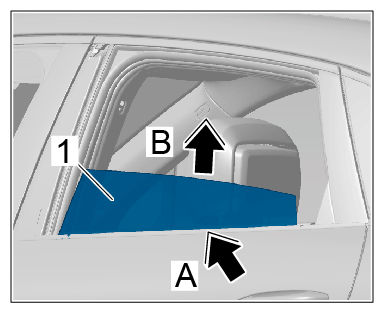

Swivel rear door window glass -1- back slightly into the door -arrow A- and pull it up -arrow B- and out carefully.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door window
