Removing Outer Front Window Channel Seal

Information

The moulding cannot be removed without damaging it irreparably and must always be replaced.

1. Open the front door window fully.

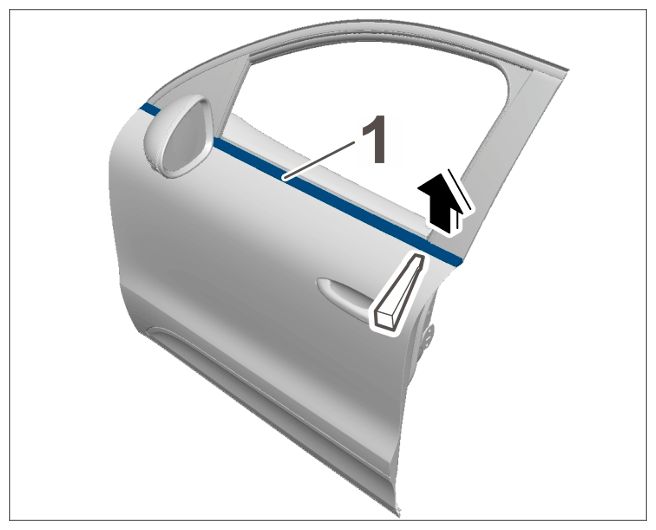

2. Pull front window channel seal -1-  up off the sheetmetal flange, starting at the rear -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front window channel seal

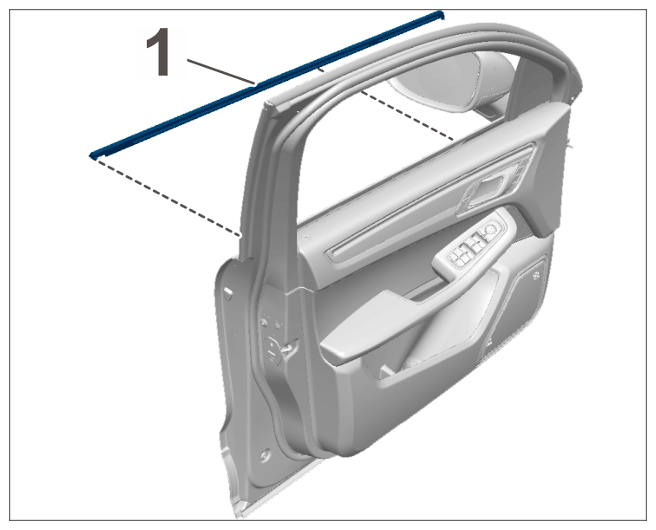

3. Remove front window channel seal -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front window channel seal
