Removing Front Door Window

  1. Remove cover -2-  .
    1. 1.1  Guide out rubber seal -1-  at the cover -2-  .
    2. 1.2  Guide out wire harness -3-  at the brackets for the cover -2-  .
    3. 1.3  Unclip cover -2-  on front door inner panel, guide out door release cable at the cover -2-  and remove cover -2-  .
      G15160226Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cover

  2. Slide front door window glass -1-  down until the mountings -4-  are accessible through the cut-outs in the door inner panel.
    G15160227Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Door window mounting

  3. Loosen door window glass -1-  from the relevant mounting points -4-  on the power windows mechanism.
    1. 3.1  Actuate locking mechanism -2-  and remove limit stop -3-  on the power windows mechanism.
    2. 3.2  Move front door window glass -1-  down until the locking mechanism -5-  is accessible.
    3. 3.3  Actuate locking mechanism -5-  using a suitable tool -arrow A-  and carefully lift the front door window glass -1- (-arrow B-)  .
    4. 3.4  Pull front door window glass -1-  completely up -arrow B-  out of the mountings -4-  .

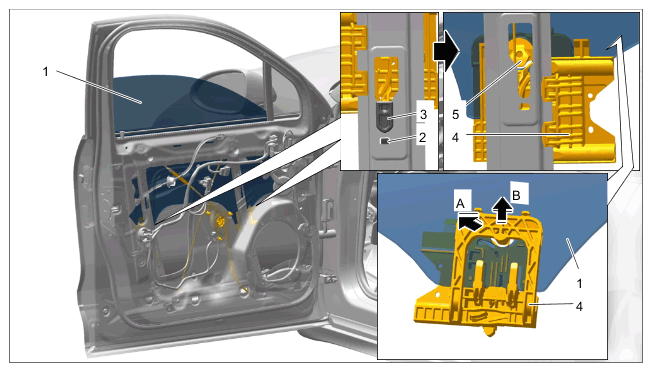

      G15160228Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Door window mounting

  4. Pull front door window glass -1-  up slightly, tilt it forward at an angle -arrow A-  and pull it up -arrow B-  out of the window guide.

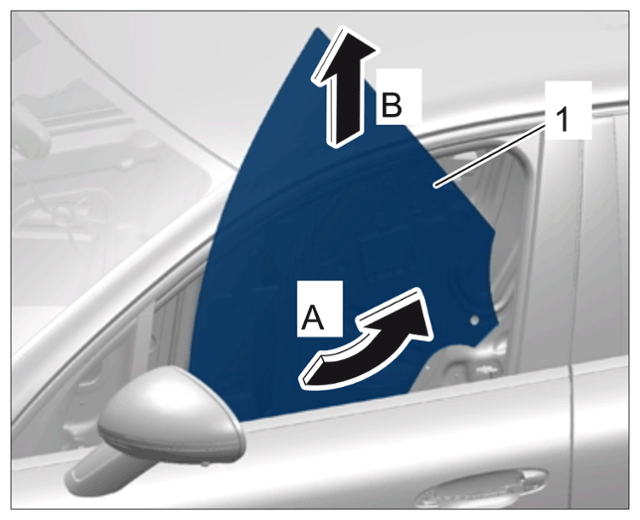

    G15160229Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front door window
