Removing Load-Through Provision

1. Fold left and right backrest and load-through provision forward.
2. Remove bearing bracket -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

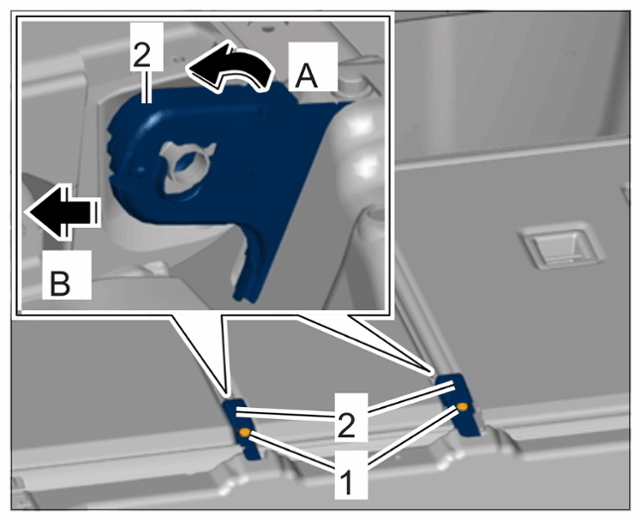

   Bearing bracket

   1. 2.1 Unscrew screws -1-  . Fit new screws  .
   2. 2.2 Turn bearing bracket -2-  (-arrow A-  ) and guide it out of the cross bolt -arrow B-  .
   3. 2.3 Remove bearing bracket -2-  .
3. Remove load-through provision -1-  by pulling it upwards -Arrows-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

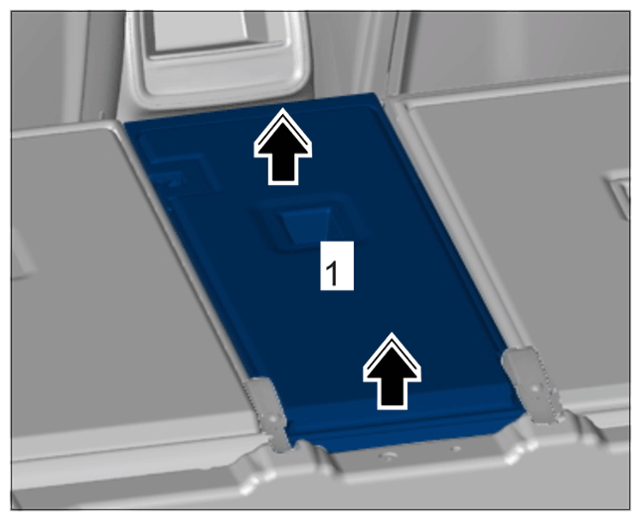

Load-through provision
