Securing Padding For Rear Seat Surface

1. Position seat cover on the padding.

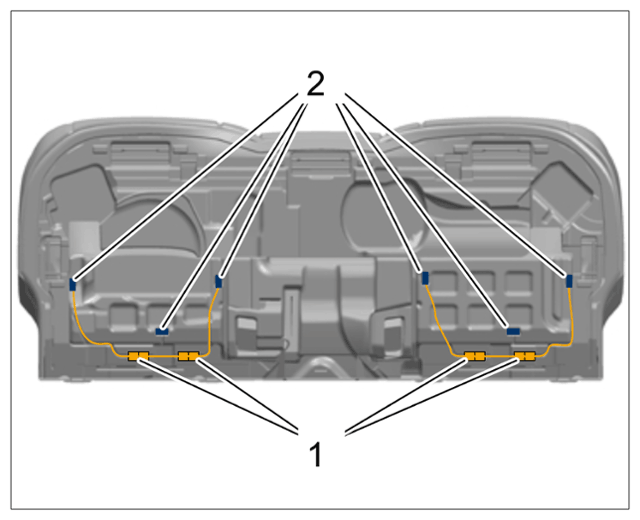

   Only for vehicles with heated seats:  Pull electric plug connection for heated seats -1-  through the openings in the padding for rear seat surface -2-  , connect it and secure lines in the padding.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

2. Secure metal struts in the cover -A -  using > Nr.130 - cushion clip pliers  in the sequence shown -1 - 47-  and -1 - 51-  to the fastening points on the padding -B -  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

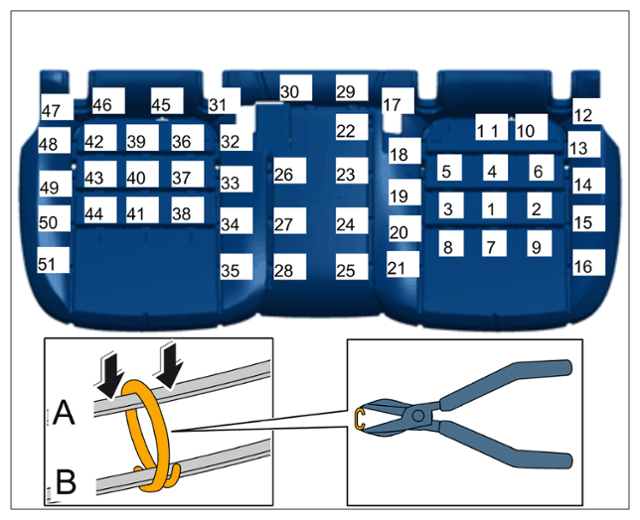

Rear seat cover (basic/Comfort)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

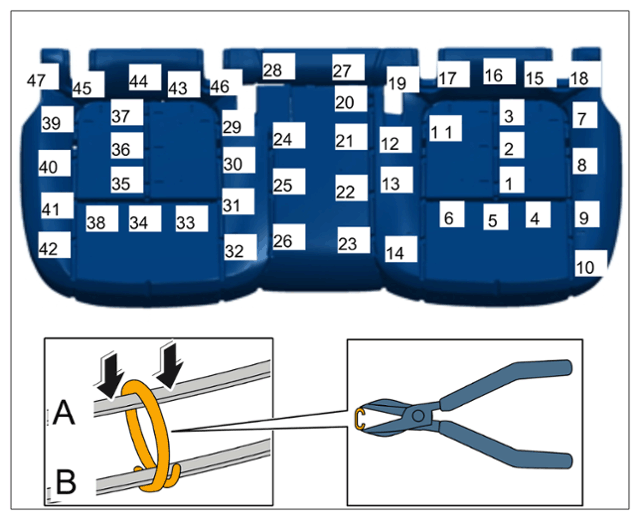

Rear seat cover (Sport)
