Removing Cover For Front Backrest

Information

Detach padding from cover and secure it, see

> 741955 - REPLACING COVER FOR FRONT BACKREST

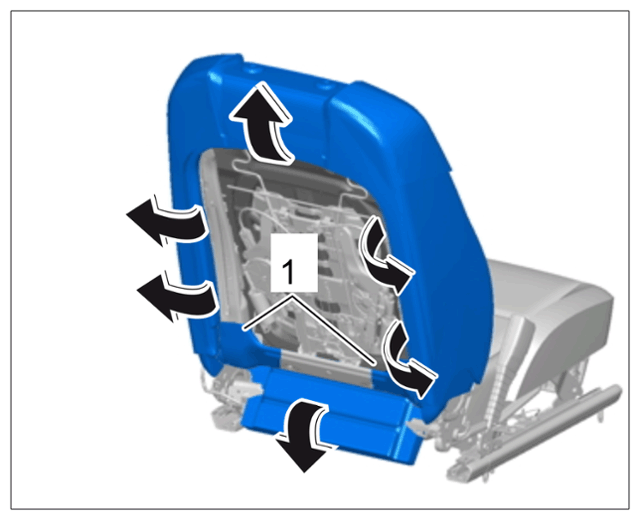

1. Detach cover for front backrest.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front backrest cover

   1. 1.1 Detach cover for front backrest all the way around -Arrows-  .
   2. 1.2 Pull out fixing clips -1-  .

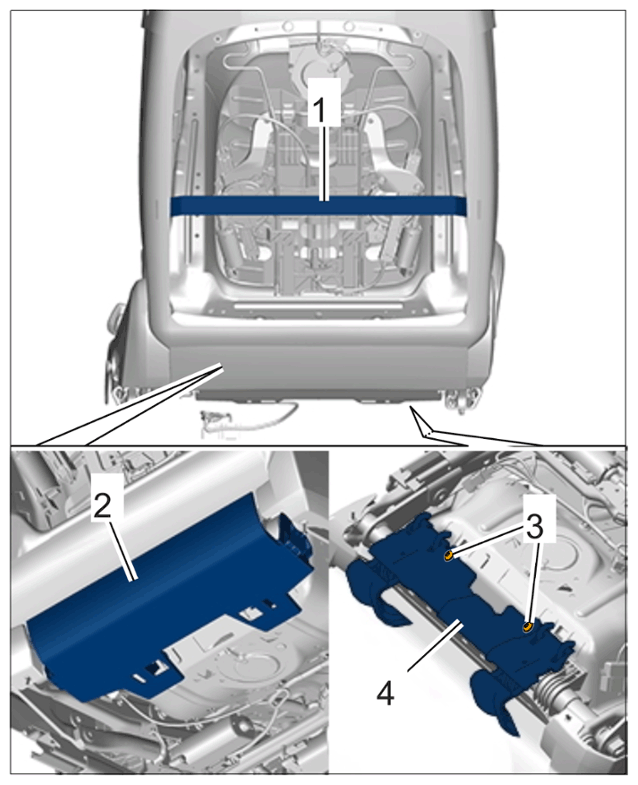

2. Detaching cover for front backrest

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Restraining strap

   1. 2.1 Disengage restraining strap -1-  .
   2. 2.2 Unclip rear seat cover -2-  by pulling it downwards.
   3. 2.3 Unscrew screws -3-  on ISOFIX clip -4-  .

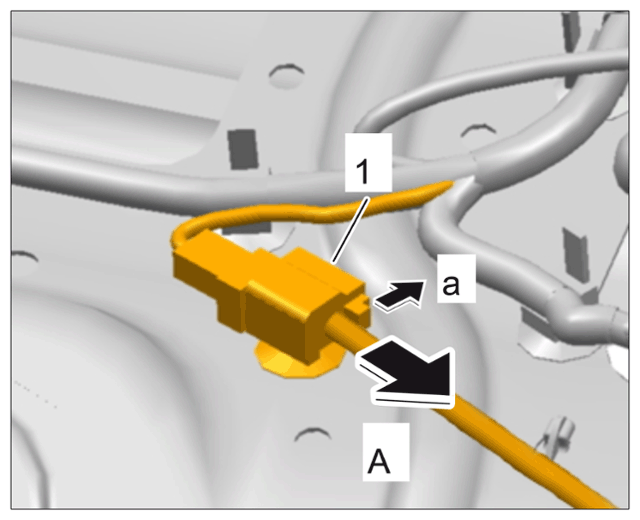

3. Release electric plug connection for seat heating -1-  at the underside of the seat -arrow a-  and disconnect it -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for heated seats

4. Carefully place cover for front backrest over the ends of the headrest guides.

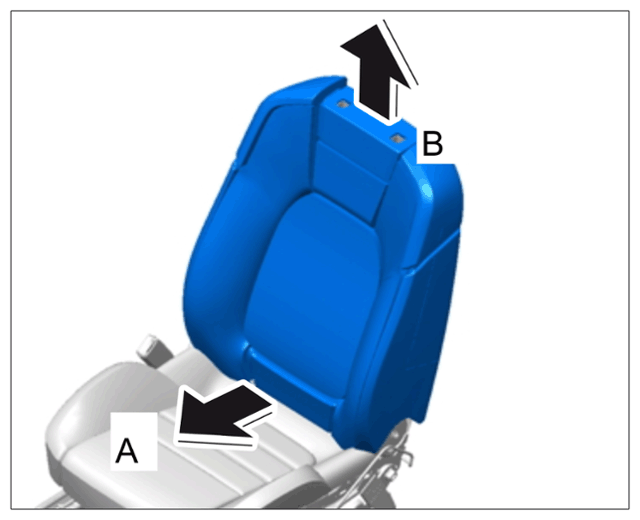

5. Remove padding with cover for front backrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Padding for front backrest

1. 5.1 Pull padding with cover for front backrest forward between the seat surface and backrest -arrow A-  .
2. 5.2 Pull padding with cover for front backrest up and off -arrow B-  .
