Removing Motor For Seat Adjustment

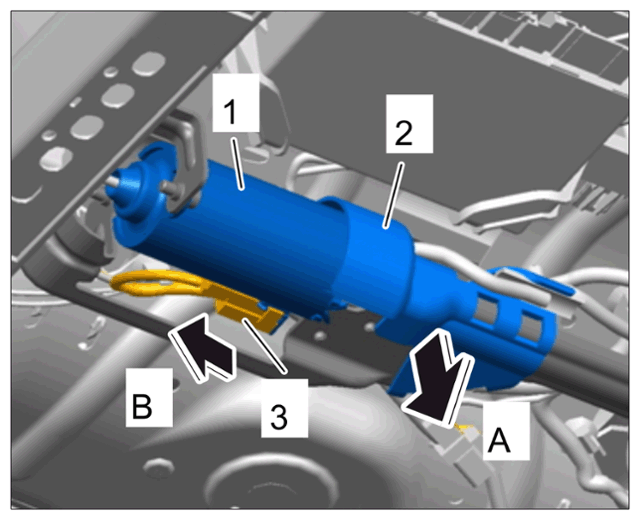

Push out locking mechanism for cover for motor -2- from the rear and unclip cover for motor -1- (-A-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for motor
Pull electric plug connection -3- off the motor -B- .

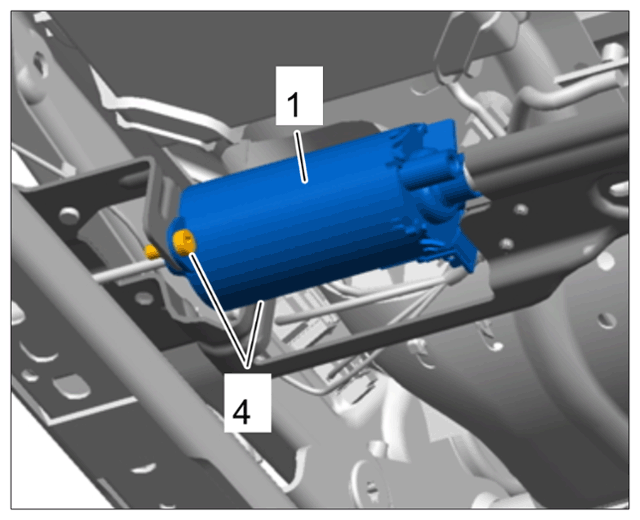

Unscrew two fastening screws -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine

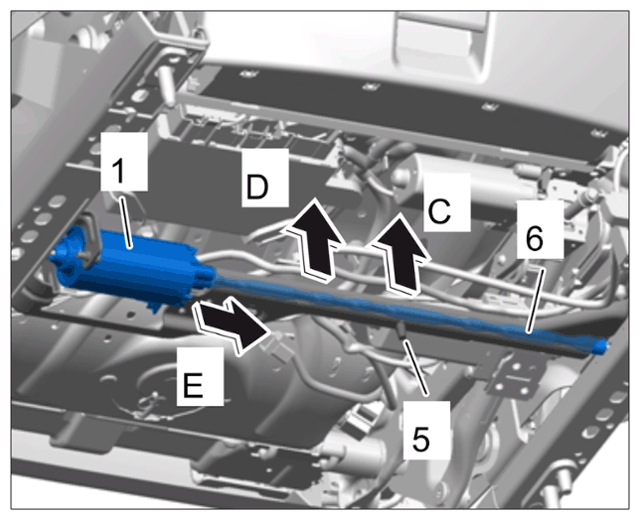

Unclip fixing clip -5- for the long drive shaft -6- (-C-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Long drive shaft
Carefully bend the long drive shaft -6- (-D-) and pull it off the motor -1- (-E-) .

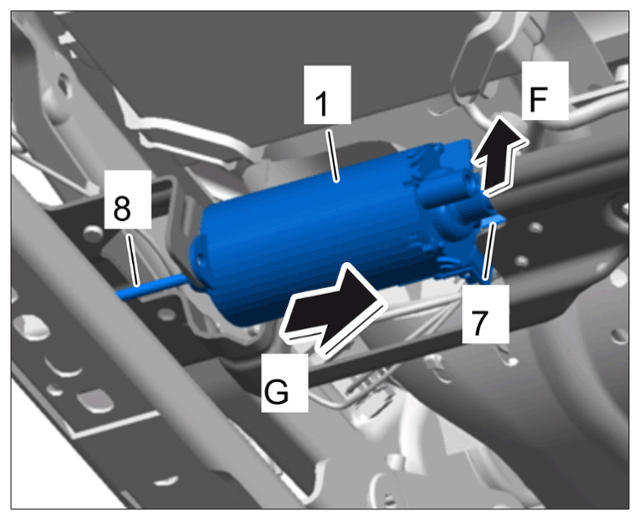

Unclip the motor -1- from the seat frame -7- (-F-) and pull it off the short drive shaft -8- (-G-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Motor on short drive shaft
