Installing Seat Adjustment Switch

  1. Screw in three screws -1-  and tighten to > Tightening - torque 2.5 Nm (1.9 ftlb.)  .
    G15161677Courtesy of PORSCHE CARS NORTH AMERICA, INC.

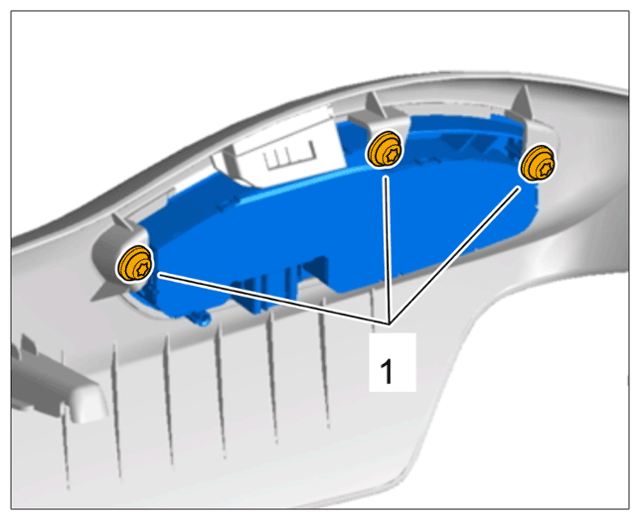

    Switch for seat adjustment
