Removing Rear Headrest

  1. Fold rear backrest -1-  forward.
    G15161669Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear headrest

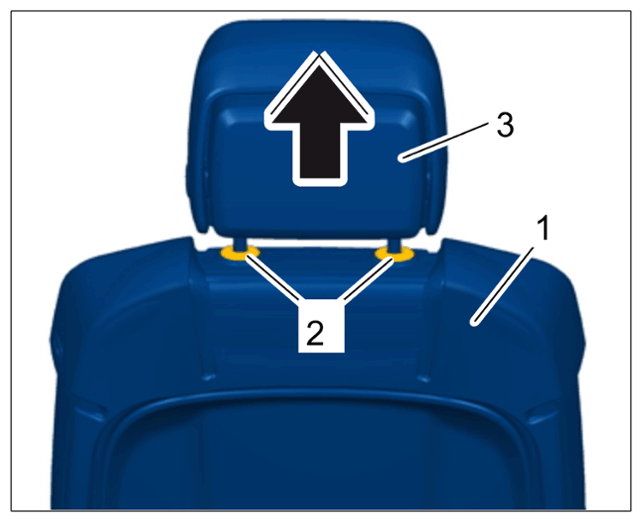

  2. Press in adjustment buttons -2-  at the sides and pull headrest -3-  up and out -Arrow-  .
    G15161670Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear headrest
