Removing Front Headrest

  1. Press adjusting knob -arrow A-  and pull headrest up as far as it will go.
    G15161666Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front headrest

  2. Press down cushion beside the right headrest guide -arrow B-  .
    G15161667Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front headrest

    Information

    The locking mechanism is on the right-hand side of the vehicle on all outer headrests and must always be pressed towards the left-hand side of the vehicle.

  3. Press locking mechanism inwards with your finger -arrow C-  and pull the headrest up -arrow D-  and out at the same time.

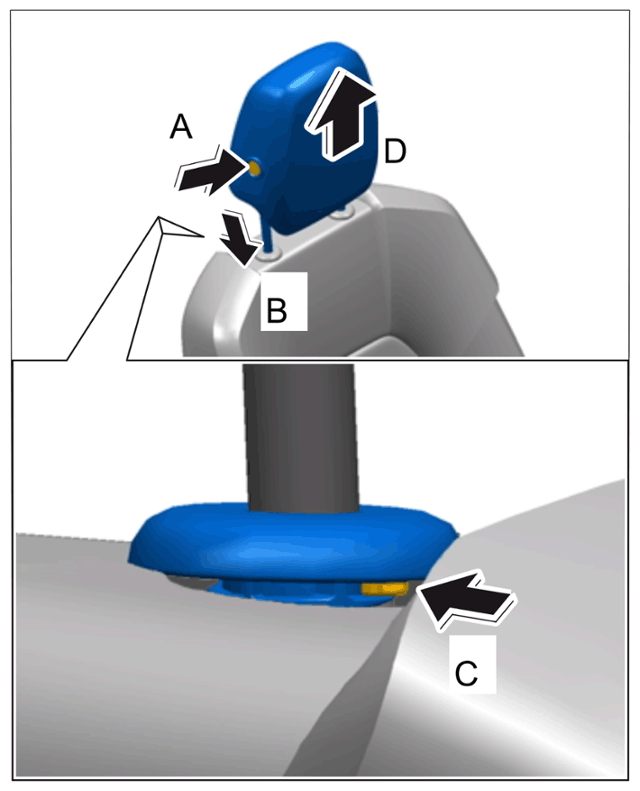

    G15161668Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front headrest
