Installing Front Headrest

  1. Push headrest into headrest guides.
  2. Press adjusting knob -A-  and push headrest down -B-  until the locking lug engages at the limit stop.

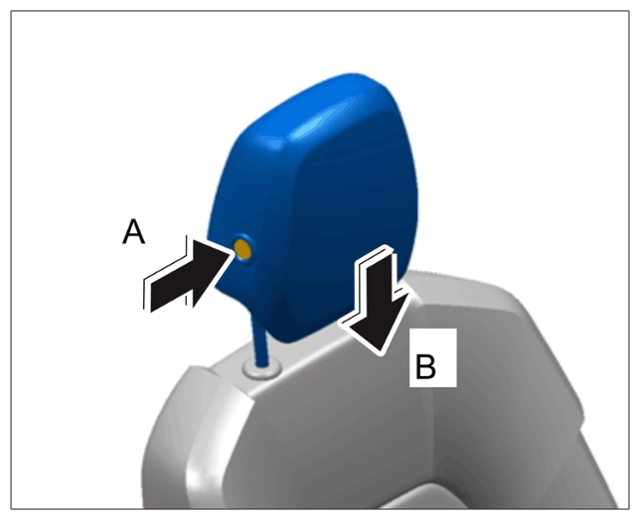

    G15161672Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front headrest
