Removing Inner Mount For Rear Backrest (On Backrest Side)

  1. Loosen the adhesive pad -1-  from the inner mount -2-  .

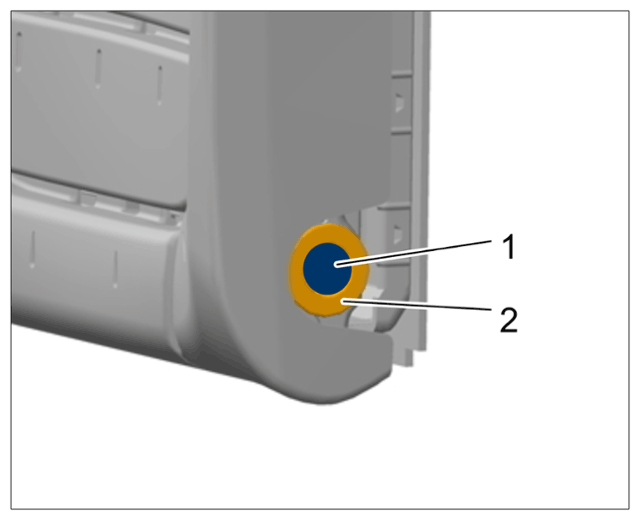

    G15161621Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Inner mount for rear backrest

  2. Unscrew the inner mount for the rear backrest (on the backrest side) -2-  .
