Removing Rear Seat

  1. Remove ISOFIX cover.

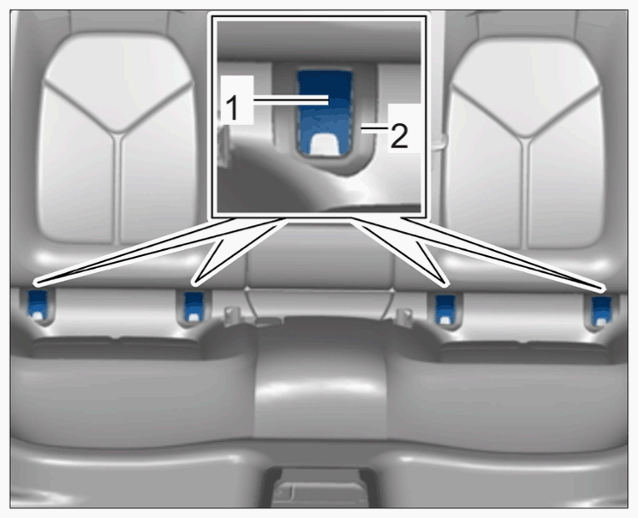

    G15161610Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ISOFIX cover

    1. 1.1  Pull ISOFIX trims -1-  up and remove them.
    2. 1.2  Press ISOFIX cover -2-  down and pull it forward out of the ISOFIX bracket.
  2. Pull up entire surface of rear seat -1-  at the front -A rows-  .

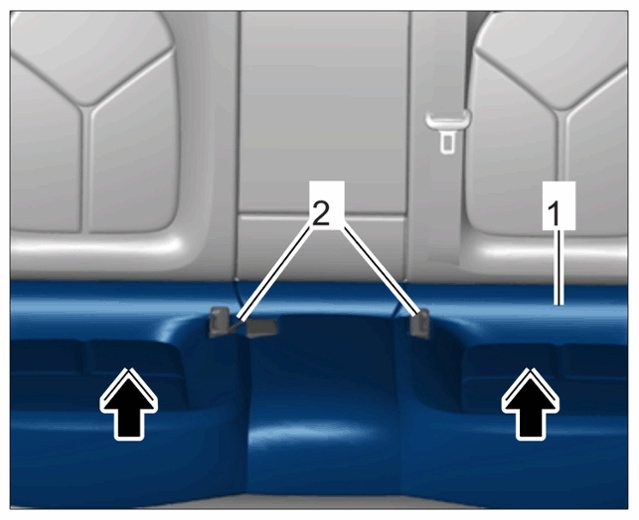

    G15161611Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear seat

  3. Guide seat-belt buckles -2-  out towards the holes in the rear seat and adjust rear seat to upright position.

    Information

    The number of electric plug connections can vary, depending on vehicle equipment.

  4. Disconnect electric plug connections -1-  for heating elements.

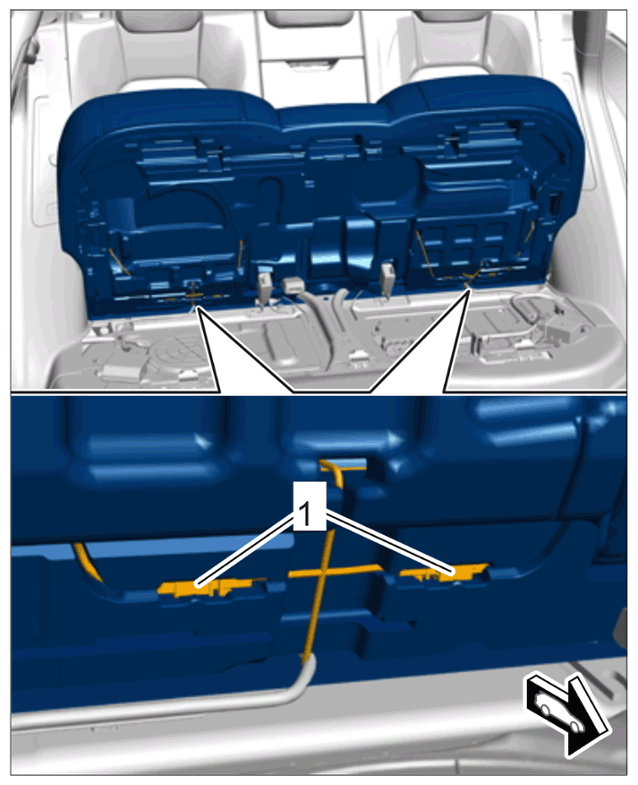

    G15161612Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  5. Remove rear seat.
