Installing Rear Seat

Information

The number of electric plug connections can vary, depending on vehicle equipment.

1. Connect electric plug connection -1-  for heating elements.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

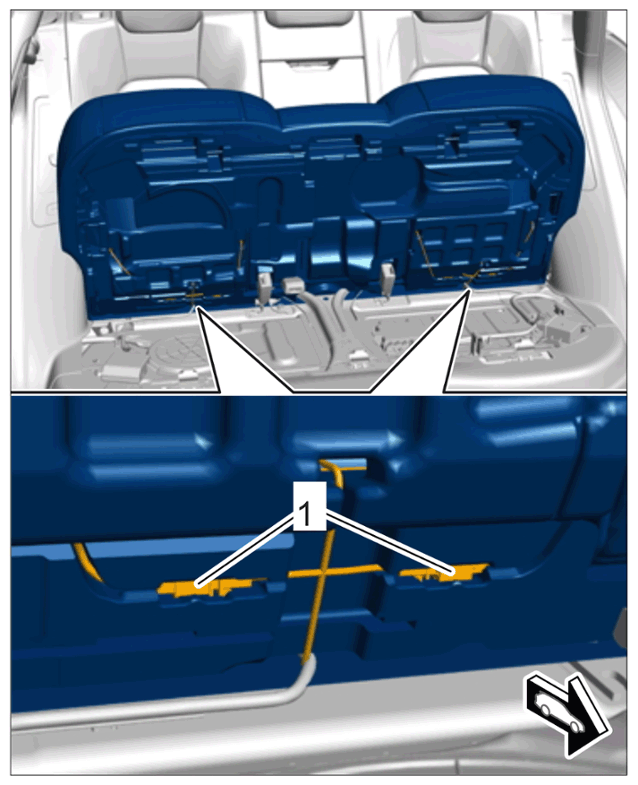

   Electric plug connection

2. Pull seat-belt buckles -1-  through the openings in the rear seat -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

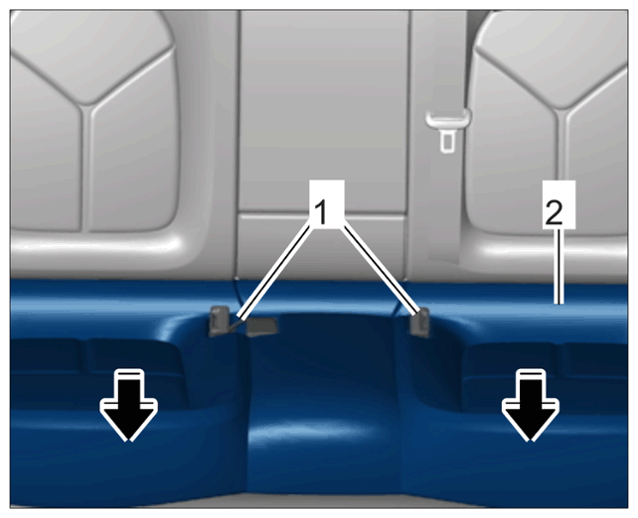

   Rear seat

3. Align rear seat mounting with the appropriate holders on the body and press down firmly -Arrows-  .
4. Install ISOFIX covers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

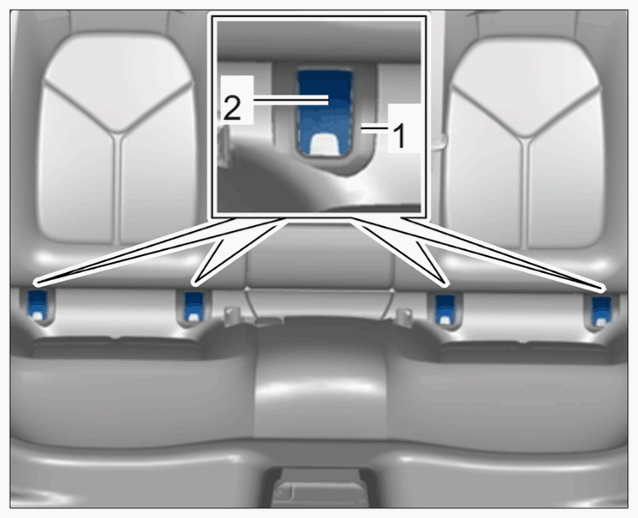

   ISOFIX covers

   1. 4.1  Install ISOFIX covers -1-  and lock them by pushing them upwards.
   2. 4.2  Install ISOFIX trims -2-  .
